Product Description

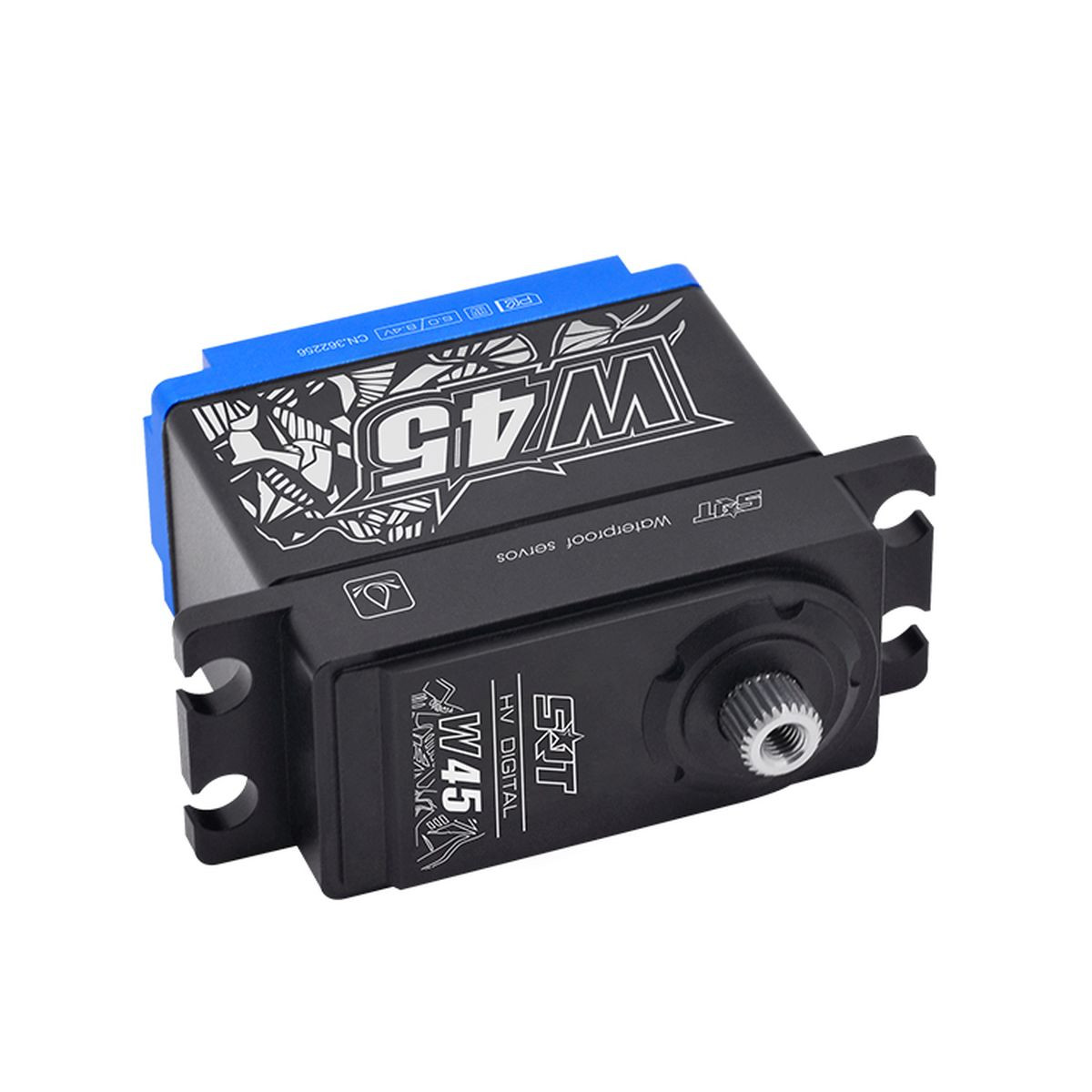

SRT Standard HV Coreless Waterproof Servo, .18sec / 624.9oz @ 8.4V (SRTW45)
The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- NMB dual main bearings
- 25T output shaft
- HD 4096 Resolution
- 2 usec Dead Band
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Coreless
- Gear Type: Metal
- Gear Material: Titanium & Steel
- Control System: Pulse Width Control
- Working Frequency: 1520Is / 330hz
- Operating Voltage: dc6.0-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (6.0v): 0.20 sec/60 degrees at no load
- Operating Speed (7.4v): 0.19 sec/60 degrees at no load
- Operating Speed (8.4v): 0.18 sec/60 degrees at no load
- Stall Torque (6.0v): 34.0kg.cm (472.2 oz/in)
- Stall Torque (7.4v): 40.0kg.cm (555.5 oz/in)
- Stall Torque (8.4v): 45.0kg.cm (624.9 oz/in)
- Potentiometer Drive: Direct Drive
- Dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
- Weight: 82.5g (2.91 oz)
- Connector Wire Length: jr 360 mm
Includes:

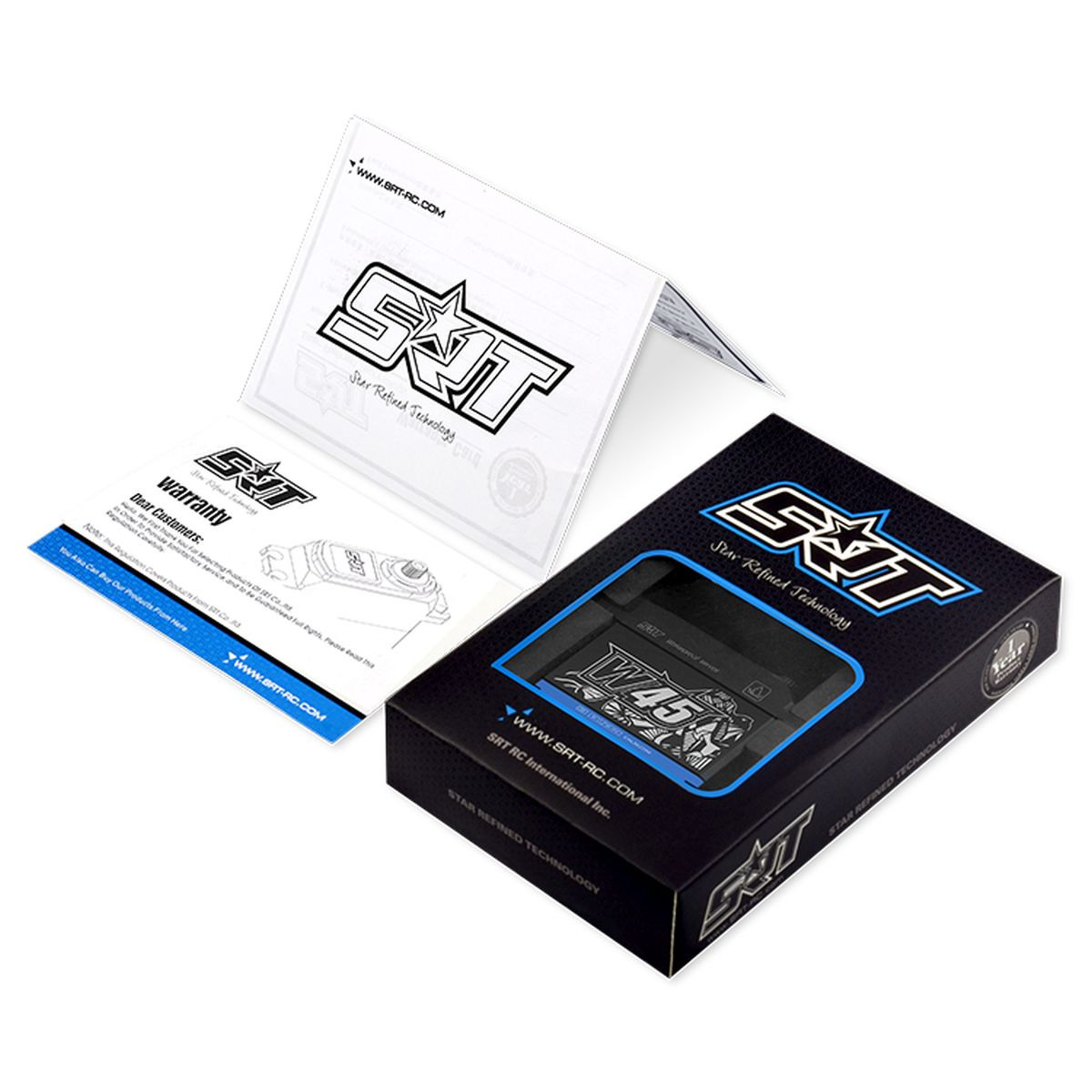

- (1) Standard HV Coreless Waterproof Servo, .18sec / 624.9oz @ 8.4V
