Product Description

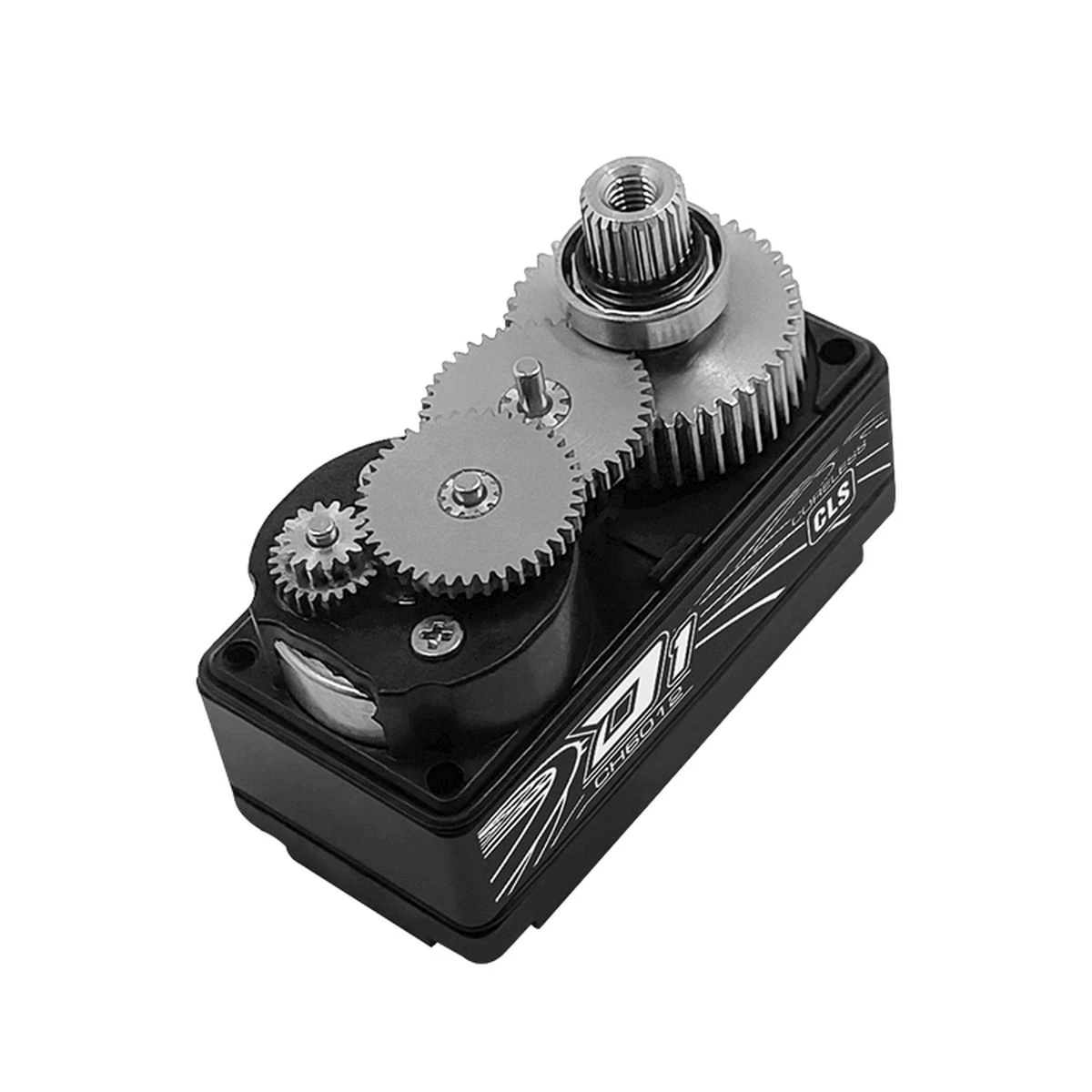

SRT Low Profile HV Coreless Digital Servo, .06sec / 166.6oz @ 7.4V
The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a low profile standard sized servo for High-Voltage applications up to 7.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Ideal for 1/10 on road and 1/8 off road scale applications
- Incredible efficiency and low power consumption
- 2 usec Dead Band
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Aluminum
Control System: Pulse width control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc6.0-7.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.07 sec/60 degrees at no load
Operating Speed (7.4v): 0.06 sec/60 degrees at no load
Stall Torque (6.0v): 9.0kg.cm (125.0 oz/in)
Stall Torque (7.4v): 12.0kg.cm (166.6 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
Weight: 48.0g (1.69 oz)
Connector Wire Length: jr 110 mm
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Aluminum
Control System: Pulse width control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc6.0-7.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.07 sec/60 degrees at no load
Operating Speed (7.4v): 0.06 sec/60 degrees at no load
Stall Torque (6.0v): 9.0kg.cm (125.0 oz/in)
Stall Torque (7.4v): 12.0kg.cm (166.6 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
Weight: 48.0g (1.69 oz)
Connector Wire Length: jr 110 mm
Includes:
(1) SRT Low Profile HV Coreless Digital Servo, .06sec / 166.6oz @ 7.4V
(1) SRT Low Profile HV Coreless Digital Servo, .06sec / 166.6oz @ 7.4V
