Product Description

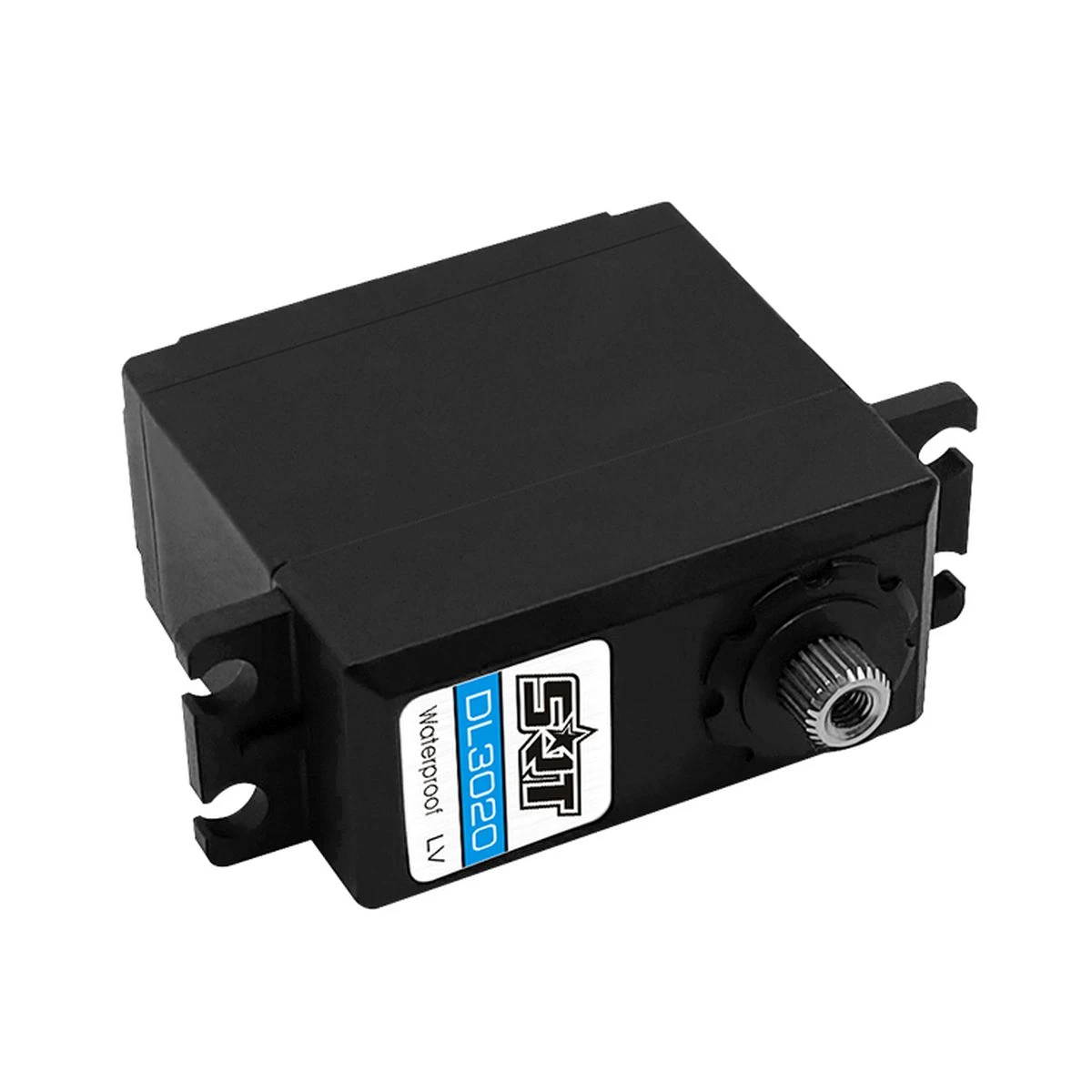

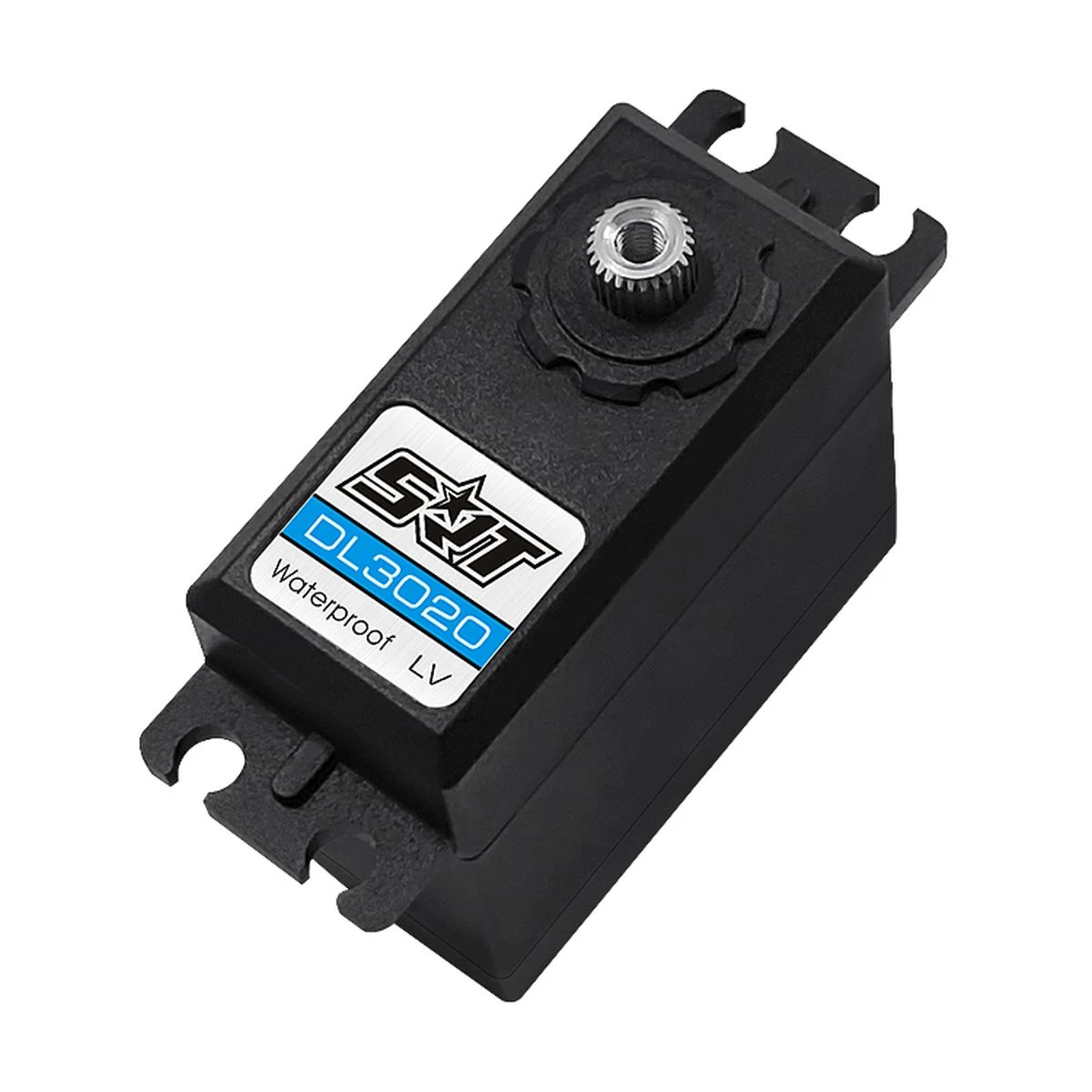

SRT Standard LV DC Digital Waterproof Servo, .13sec / 208.3oz @ 6.0V
The latest generation of SRT waterproof servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for applications up to 6.0V.
Features:
- Ideal for 1/10 on road applications
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- Waterproof
- Superior Holding Torque
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc4.8-6.0v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8v): 0.15 sec/60 degrees at no load
Operating Speed (6.0v): 0.13 sec/60 degrees at no load
Stall Torque (4.8v): 12.0kg.cm (166.6 oz/in)
Stall Torque (6.0v): 15.0kg.cm (208.3 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
Weight: 65.0g (2.29 oz)
Connector Wire Length: jr 300 mm
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc4.8-6.0v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8v): 0.15 sec/60 degrees at no load
Operating Speed (6.0v): 0.13 sec/60 degrees at no load
Stall Torque (4.8v): 12.0kg.cm (166.6 oz/in)
Stall Torque (6.0v): 15.0kg.cm (208.3 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
Weight: 65.0g (2.29 oz)
Connector Wire Length: jr 300 mm
(1) Standard LV DC Digital Waterproof Servo, .13sec / 208.3oz @ 6.0V
