Product Description
Eflite Habu XS (eXtra Sport) 80mm EDF BNF Basic with AS3X+ and SAFE Select
Based on the legendary Habu design, the E-flite® Habu XS (eXtra Sport) 80mm EDF is a more powerful and capable “full-house” version of the popular Habu SS (Super Sport) 50mm and 70mm models. It has an extremely wide flight envelope that combines incredible low and high-speed performance plus aerobatic capability, making it an excellent choice for experienced and low-time jet pilots. At its core is a 6S compatible Spektrum brushless motor and Avian™ 130-amp Smart ESC matched to a 12-blade fan that works with the expertly engineered and optimized ducting to deliver an abundance of speed, thrust, and a turbine-like sound – without the need for “cheater” holes. It’s capable of level flight top speeds up to 120 MPH and has impressive vertical performance. Plus, it can fit batteries from 4000mAh up to 7000mAh to deliver class-leading flight times.
No glue is required for assembly, and the factory-finished one-piece wing, separate one-piece stabilizers, and fuselage bolt together so the Habu XS can be ready to fly in almost no time. The lightweight, composite-reinforced EPO airframe is factory-finished in a premium, fully painted trim scheme, while the plastic-capped hatch edges and opening improve durability to prevent damage and paint chipping when installing/removing batteries. Eight factory-installed digital, metal-geared servos with ball-link equipped linkages, plus control surfaces with unique captured rod hinges, deliver crisp and precise control at every speed. Functional features include LED landing and navigation lights, extremely effective flaps, and electric retracts with shock-absorbing, trailing-link struts on the nose and main gear so you can easily fly from grass and other surfaces.
Both versions include the factory-installed power system and servos. The BNF® Basic version also has a factory-installed Spektrum AR637TA+ receiver featuring enhanced AS3X+® and optional-use SAFE® Select technologies. When using compatible AirWare®-equipped transmitters, the receiver and Smart ESC supply overall battery voltage, current draw, motor RPM, and other telemetry data in real-time — with both Smart and non-Smart batteries. With a 7–8+ channel transmitter, you can also utilize the optional-use motor/thrust reversing to shorten rollouts after landing and for other unique ground handling capabilities. It all adds up to deliver a full-house and high-performance EDF jet experience unlike any other for low-time to experienced jet pilots!
Features
- Spektrum AR637TA+ receiver with full-range telemetry and industry-leading DSMX technology
- Receiver loaded with a Smart Transmitter File (STF) that allows you to import all settings for NX and iX series transmitters during the binding process
- A more powerful and capable “full-house” version of the popular Habu SS (Super Sport) 50mm and 70mm models that offers “eXtra” speed and aerobatic capability
- Unique wing design delivers incredible low-speed handling and slow-speed performance that makes it one of the easiest to fly and land jets
- Inspired by one of the highest-performance EDF (Electric Ducted Fan) sport jet models ever designed – the iconic Habu 32x
- Excellent choice for a first full-house and high-performance jet model for low-time to experienced EDF pilots
- Expertly engineered and optimized ducting for incredibly efficient performance without “cheater” holes
- Extremely wide performance envelope and speed range, capable of level flight top speeds up to 120 MPH
- 12-blade 80mm fan delivers excellent top speed and vertical performance plus turbine-like sound
- Factory-installed 6S-compatible Spektrum brushless motor and Avian 130-amp Smart ESC
- Spektrum Avian Smart ESC provides real-time battery voltage, current draw, and other data – with Smart and non-Smart batteries – via compatible transmitters
- Fast and easy assembly – no glue required
- The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology
- Easier to fly with innovative and optional-use SAFE Select flight envelope protection
- Optional-use motor/thrust reversing to help shorten rollout after landing and for other unique ground-handling capabilities
- Eight factory-installed digital, metal-geared servos with ball-link equipped linkages and control surfaces with captured rod hinges
- Reliable electric retracts with shock-absorbing, trailing-link struts for grass and other field operation
- Functional flaps for shorter takeoffs and landings, plus improved slow-flight performance
- LED navigation and landing lights for enhanced visibility and orientation
- Lightweight yet strong and durable composite-reinforced EPO construction
- Large and convenient top hatch with clear canopy, cockpit detail, and pilot figure
- Plastic capped hatch edges and opening for added durability to prevent paint chipping
- One-piece wing with convenient hands-free connections for more accessible storage and transport
- Factory-finished with a fully painted and high-visibility trim scheme
- Popular 6S 4000–7000mAh 30+C batteries deliver excellent performance and flight times
Skill Level 2 – Some Experience Required
Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. And although this is one of the easiest-to-fly “full-house” Habu models yet, it’s not a suitable first-ever RC aircraft for new pilots or first-ever EDF (Electric Ducted Fan) jet model for intermediate to experienced RC pilots. You should have the experience and skills necessary to successfully fly simpler EDF models like the E-flite Habu SS (Super Sport) 50mm or 70mm or similar jet models before attempting to fly the Habu XS (eXtra Sport) 80mm EDF.
Are you new to flying RC (Radio Controlled) aircraft? If you are, the Habu XS 80mm is not a suitable first-ever RC model, and we recommend learning to fly with one of our purpose-built trainer aircraft such as the E-flite® Habu STS (Smart Trainer with SAFE) 70mm EDF (www.horizonhobby.cc/HabuSTSRTF). It’s equipped with exclusive and innovative SAFE technology, making it possible for almost anyone to learn to fly successfully! The Ready-To-Fly (RTF) Basic version includes nearly everything needed to fly (except for a compatible LiPo battery and charger sold separately or together in a money-saving Powerstage bundle) and is a perfect choice if you’re a new RC pilot.
Exclusive Technologies
The BNF Basic version Habu XS 80mm EDF is equipped with exclusive Spektrum AS3X+ and SAFE Select technologies. Enhanced AS3X+ technology works behind the scenes to smooth out the effects of wind and turbulence and deliver an even more locked-in feel than standard AS3X, which makes it seem like you’re flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits and automatic self-leveling that can be turned on and off at the flip of a switch! If you don’t want to enable the SAFE Select features, simply bind the receiver normally, and only AS3X+ will be active. The receiver is also loaded with a Smart Transmitter File (STF) that allows you to import all the settings for NX and iX series transmitters during the binding process to be ready to fly in less time than ever!
Smart Technology

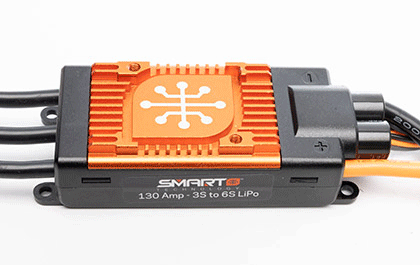

The exclusive Spektrum Avian Smart ESC provides a variety of real-time power system-related telemetry data, including overall battery voltage, current draw, motor RPM, and more – with both Smart and non-Smart batteries – via compatible receivers (including the AR637TA+) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, optional-use motor/thrust reversing can help shorten rollout after landing and offers other special ground handling capabilities (7–8+ channel transmitter required for reversing).
eXtra Capable Gear

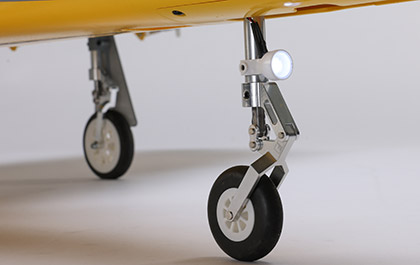

Shock-absorbing, trailing link struts on the nose and main gear soak up the bumps of rough surfaces, including grass, and make flying from a wider variety of fields possible. The reliable electric retracts have durable metal components, and the steerable nose wheel plus wide-spaced main gear offers excellent ground handling.
eXtra Functional Features
The factory-installed flaps offer improved slow-flight capability and performance, making it possible to take off and land in shorter distances and at slower speeds. This makes the Habu XS 80mm a perfect first “full-house” jet model for those moving up from simpler EDF models. It’s also equipped with LED navigation and landing lights for improved visibility and orientation.
eXtra Precision
The composite-reinforced EPO airframe is lightweight yet durable. The eight factory-installed digital, metal-geared servos with ball-link equipped linkages, plus control surfaces with captured rod hinges, deliver crisp and precise control at every speed.
eXtra Capability

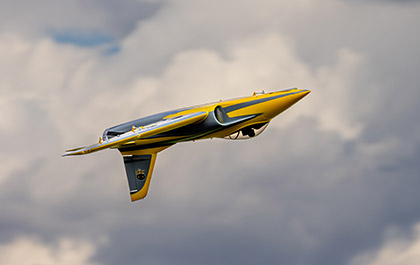

The Habu XS design offers incredible handling across a wide speed range and flight envelope. From slower-than-expected landings and low-speed passes to 120+ MPH high-speed flybys, the airframe and power system deliver unbelievable performance and aerobatic capability so you can perform giant loops, rolls, knife edge flight, snaps, and other maneuvers.
eXtra Easy Assembly
No glue is required for assembly, and you can have the Habu XS ready to fly in less time than it takes to charge a battery! The one-piece wing with hands-free connections bolts into place and can easily be removed for convenient storage and transport. Plus, the airframe is factory-finished in a premium, fully painted, and high-visibility trim scheme.
eXtra Performance
The 12-blade 80mm fan, Spektrum brushless inrunner motor and Avian 130-amp ESC combine with your 6S 4000–7000mAh 30+C LiPo battery to deliver excellent vertical performance and a fantastic speed range with virtually instantaneous throttle response. But what makes the experience truly rewarding is the sound the power system produces—it’s almost like a real turbine engine.
Bind-N-Fly Completion Level Advantage
Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!
This Bind-N-Fly Basic model is equipped with a Spektrum 2.4GHz DSMX® receiver featuring AS3X (Artificial Stabilization–3-aXis) technology that works behind the scenes to smooth out the effects of wind and turbulence. The result is a heightened sense of stability and precision that makes you feel like you're flying a much larger, expertly tuned aircraft.
If this is your first model of its type, or you want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional-use SAFE® Select flight envelope protection technology built into the receiver. No programming is required. Simply change up the binding sequence as directed in the manual.
With SAFE Select enabled, you get:
Pitch and Bank Angle Limits
- These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.
Automatic Self-Leveling
- The airplane instantly returns to and holds level flight when the sticks are released and in the center position. It's also helpful for keeping the wings level during takeoffs/launches and landings.
Easy Switch Assignment—No Complex Programming Required
- The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any complex programming and takes just a few seconds.
If you don't want to enable the SAFE Select features, just bind the receiver normally and it will function like a standard AS3X receiver.
Product Specifications
Approximate Assembly Time Less than 1 hour
CG (Center of Gravity) 125mm +/- 10mm
Completion Level Bind-N-Fly Basic
Connector Type IC5
Flaps Yes
LiPo Compatibility 6S
Minimum Required Radio Full Range 6-Channel 2.4GHz w/ Spektrum DSM2/DSMX
Motor Size 3665–2170Kv Brushless Inrunner 4-pole
Motor Type Brushless
Power Type Electric
Product Length 49.2" (1252mm)
Product Weight Without Battery: 69.56oz (1972g). With Recommended Battery: 96.72oz (2742g)
Recommended Battery 5000mAh 6S 22.2V Smart G2 LiPo 50C: IC5
Skill Level Level 2
Technology AS3X+, SAFE Select
Wingspan 48.8" (1113mm)
In The Box
(1) E-flite Habu XS (eXtra Sport) 80mm EDF with:
(1) Spektrum Brushless Inrunner Motor (installed)
(8) Spektrum Digital, Metal-Geared Servos (installed)
(1) Spektrum Avian 130-Amp Smart Brushless ESC (installed)
(1) Spektrum AR637TA+ 6-Channel Receiver with AS3X+ and SAFE Select (installed)
(1) Product Manual
Needed to Complete
For Standard Functionality:
(1) Full-range 6-channel Spektrum DSMX®/DSM2® compatible transmitter
For SAFE Select OR Motor/Thrust Reversing Functionality:
(1) Full-range 7-channel Spektrum DSMX/DSM2 compatible transmitter
For SAFE Select AND Motor/Thrust Reversing Functionality:
(1) Full-range 8+ channel Spektrum DSMX/DSM2 compatible transmitter
(1) 6S 22.2V 4000–7000mAh 30+C LiPo with EC5 or IC5 Connector
(1) Compatible LiPo charger
