Product Description

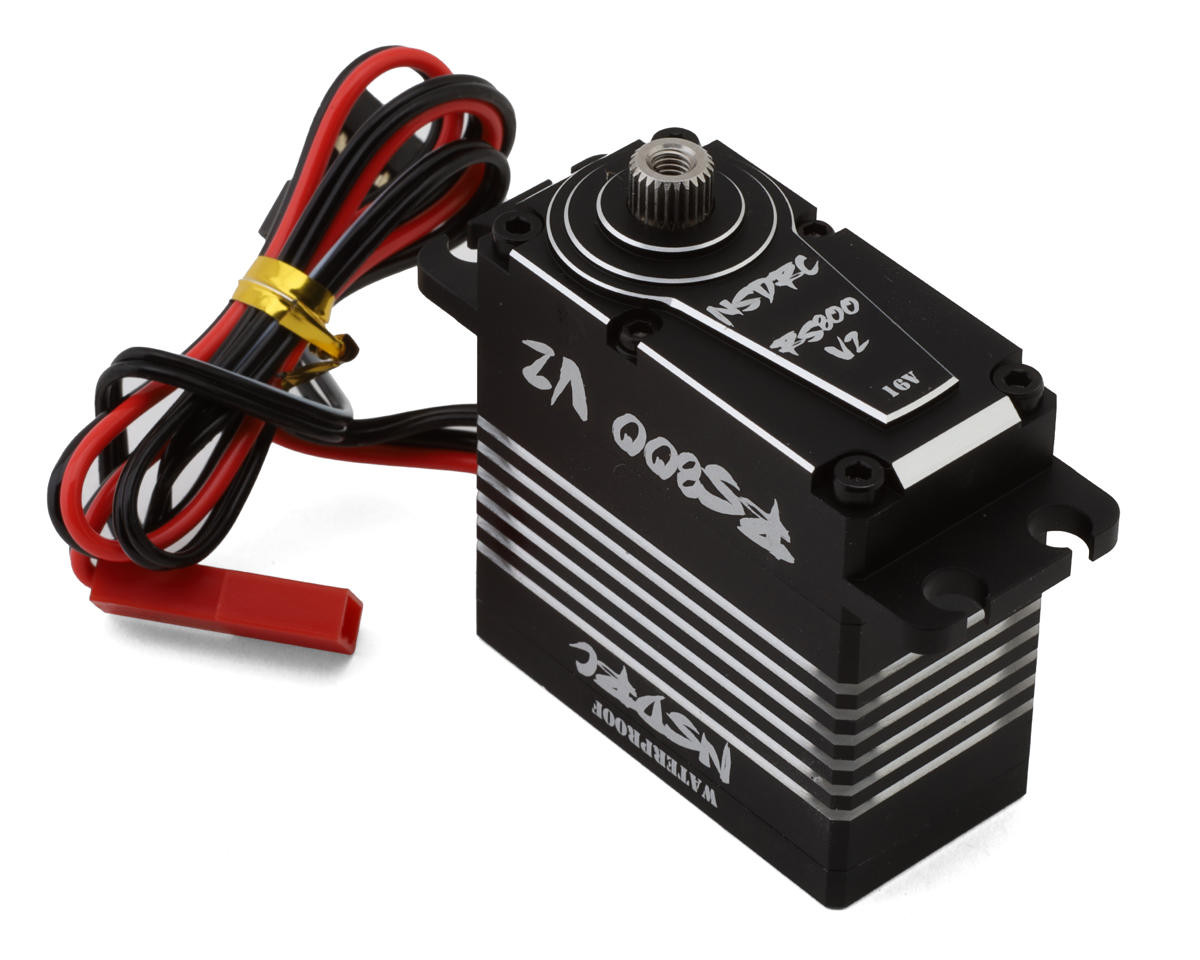

No Superior Designs RC RS800 V2 Ultra High Torque Brushless Servo (High Voltage) (NSD-RS8V2)
No Superior Designs RS800 V2 Ultra High Torque Brushless Servo. Designed to fulfill the power and speed demanded for competition level 1/10 RC crawlers and to be one of the top performing servos on the market! This powerful RS800 V2 features hardened stainless steel gears, black anodized all CNC-machined aluminum case, high quality powerful brushless motor, high voltage (HV) capability and a water resistant design. In addition, this RS800 V2 can put out up to 1100oz-in/80kg-cm of pure torque and 0.10 sec/60° of speed on 16.8V! With all these features and more at a budget friendly cost, this servo offers an incredibly unbeatable value!
NOTE:
The power connection plug, or power switch on your ESC, must be disconnected or turned off when not in use to prevent damage to the servo and/or battery.
Not recommended to power using balance plug
Features:
- Hardened stainless steel gears
- Black anodized all CNC-machined aluminum case
- Water resistant (Not Submergible)
- Designed and built with the power and speed needed for competition level 1/10 RC crawlers
- High quality powerful brushless motor
- High voltage (HV) capable
- Built with the top quality materials
Specifications:
- Type: Standard
- Motor Type: Brushless
- Operating Voltage: 8.4V - 16.8V
- Gears: Hardened Stainless Steel
- Spline: 25T
- Dimension (LxWxH): 40x39x20mm
- Weight: 85g
- Case: CNC-Machined Aluminum
Torque:
- 8.4V: 600oz/ 43kg
- 12.6V: 900oz/ 65kg
- 16.8V: 1100oz/ 80kg
Speed:
- 8.4V: 0.18 sec/60°
- 12.6V: 0.14 sec/60°
- 16.8V: 0.10 sec/60°
Includes:
- (1) RS800 V2 Ultra High Torque Brushless Servo
- Multiple composite horns
- Mounting screws, bushing and rubber grommets
