Product Description

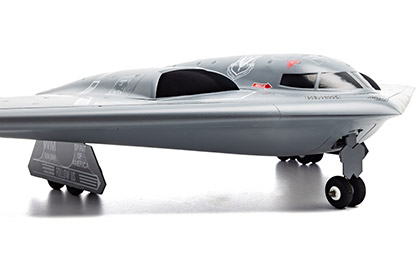

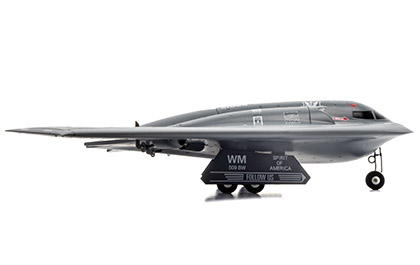

Eflite Micro B-2 Spirit of America Twin 30mm EDF BNF Basic
As a micro-sized replica of the unique and iconic stealth bomber, the E-flite® Micro B-2 Spirit Twin 30mm EDF delivers surprising performance while being affordable and convenient for intermediate to experienced pilots to fly in more places and smaller spaces!
Features
- The most practical, convenient, and easiest-to-fly B-2 Spirit EDF (Electric Ducted Fan) jet model yet
- Real-time overall battery voltage, current, and other telemetry data with compatible transmitters (with Smart and non-Smart batteries)
- Spektrum receiver with fly-by range telemetry and industry-leading 2.4GHz DSMX technology
- The unmatched stability and locked-in feel of exclusive AS3X technology
- Five factory-installed servos for aileron, elevator, yaw, and nose gear steering control
- Differential thrust plus automatic control surface mixing for yaw control and the ability to perform a wide range of aerobatics
- Take off from and land on smooth surfaces using the included landing gear with scale-like wheels plus a steerable nose wheel
- Remove the landing gear and utilize the molded-in finger grips plus automatic Hand Launch Assist Mode when flying over grass or other suitable surfaces
- Fully molded and extremely durable EPO airframe with plastic and composite reinforcements throughout
- Convenient top-mounted hatch fully conceals the flight battery compartment
- Premium fully painted with decal finish
Skill Level 2 – Some Experience Required
Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up and fly similar class models. And although this is the easiest to fly B-2 model yet, it's not a suitable first-ever RC aircraft for new pilots or first-ever EDF (Electric Ducted Fan) jet model for intermediate to experienced RC pilots. You should have the experience and skills necessary to successfully fly simpler EDF models like the E-flite Habu SS (Super Sport) 50mm or 70mm, or higher performance EDF models like the E-flite UMX Me 262, the Viper 70mm and/or larger EDF models before attempting to fly the Micro B-2 Spirit Twin 30mm EDF.
Are you new to flying RC (Radio Controlled) aircraft? If you are, the B-2 is not a suitable first-ever RC model, and we recommend learning to fly with one of our purpose-built trainer aircraft – such as the E-flite® Habu STS (Smart Trainer with SAFE) 70mm EDF. It's equipped with exclusive and innovative SAFE technology, making it possible for almost anyone to learn to fly successfully!!
Bind-N-Fly® Completion Level Advantage
Already own a Spektrum transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!
Exclusive Technologies
This is the first B-2 Spirit model with exclusive Spektrum AS3X and SAFE Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch to make this an easier-to-fly B-2. SAFE Select also features an automatic Hand Launch Assist mode that senses the force of a hand launch and adds up elevator so the airplane climbs at a higher angle for a few seconds to make it easier to launch.
Telemetry Capability

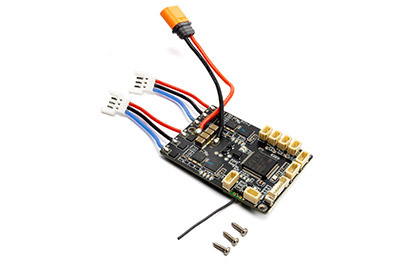

The Micro B-2 Spirit Twin 30mm EDF is equipped with a control unit including a receiver and ESCs that provide a variety of real-time power system-related telemetry data, including overall battery voltage, current draw, and more – when using Smart and non-Smart batteries – to compatible Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, the iX12 to 20, and others) while you fly.
Higher Performance

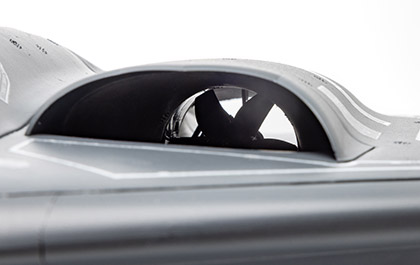

The factory-installed twin brushless power systems feature 30mm fans with powerful 3S-compatible outrunner motors. This power system setup delivers excellent speed and vertical performance, plus longer than average EDF flight times, when using the recommended 850mAh 30+C LiPo batteries with an IC2 connector.
Gear Options

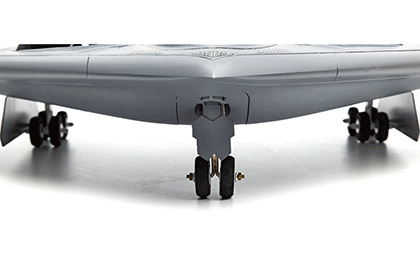

You can use the included fixed landing gear – with a steerable nose wheel and simulated gear doors/strut covers – to taxi, take off from, and land on smooth surfaces. Or fly without the landing gear installed for more speed and performance while utilizing the molded-in finger grips and automatic Hand Launch Assist mode for easy hand launches and landings on grass.
Durable Design

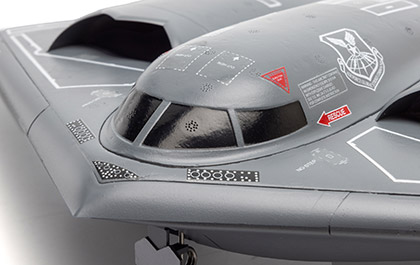

The EPO airframe features various scale details, plastic-reinforced leading edges and wing tips, plus composite reinforcements in the nose and throughout, making it highly durable yet lightweight. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flying experience.
Fully Assembled
The Micro B-2 arrives 100% factory-assembled and ready to fly right out of the box! It's equipped with industry-leading Spektrum 2.4GHz technology that binds to your 5+ channel DSMX/DSM2 equipped transmitter, so you can fly within minutes of opening the box.
Factory Finished
The factory-applied and fully painted plus decal finish looks great and replicates the “Spirit of America” trim scheme.
With SAFE Select enabled, you get:
Pitch and Bank Angle Limits
- These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.
- Automatic Self-Leveling
- The airplane instantly returns to and holds level flight when the sticks are released and in the center position. It's also helpful for keeping the wings level during takeoffs/launches and landings.
Easy Switch Assignment—No Complex Programming Required
- The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any complex programming and takes just a few seconds. For models like this one, SAFE Select is automatically assigned to channel 5 (Gear) so you can turn it on an off with any switch assigned to that channel (switch A by default on most Spektrum computer transmitters).
Approximate Assembly Time No assembly required
CG (Center of Gravity) 135-142mm
Completion Level Bind-N-Fly Basic
Connector Type IC2
Fan Size 30mm EDF
LiPo Compatibility 3S
Material EPO
Minimum Required Radio 5+ channel full-range
Motor Size 0808-8800Kv 8-pole
Motor Type Brushless
Power Type Electric
Product Length 13.2" (335 mm)
Weight Without Battery: 7.7oz (217g)
Recommended Battery 3S 11.1V 850mAh 30+C LiPo with IC2 Connector
Skill Level Level 2
Technology AS3X, SAFE Select
Trim Scheme Colors “Spirit of America” Grey
Wingspan 33.6" (853 mm)
(1) E-flite Micro B-2 Spirit Twin 30mm EDF with:
(5) Spektrum Linear Servos (installed)
(2) Spektrum Brushless Outrunner Motors (installed)
(1) Spektrum Control Unit with (1) Receiver and (2) Brushless ESCs (installed)
(1) Product Manual
(1) Full-range 5+ channel Spektrum™ DSMX®/DSM2® compatible transmitter
(1) 3S 11.1V 850mAh 30+C LiPo with IC2 Connector
(1) Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320, sold separately)
