Product Description

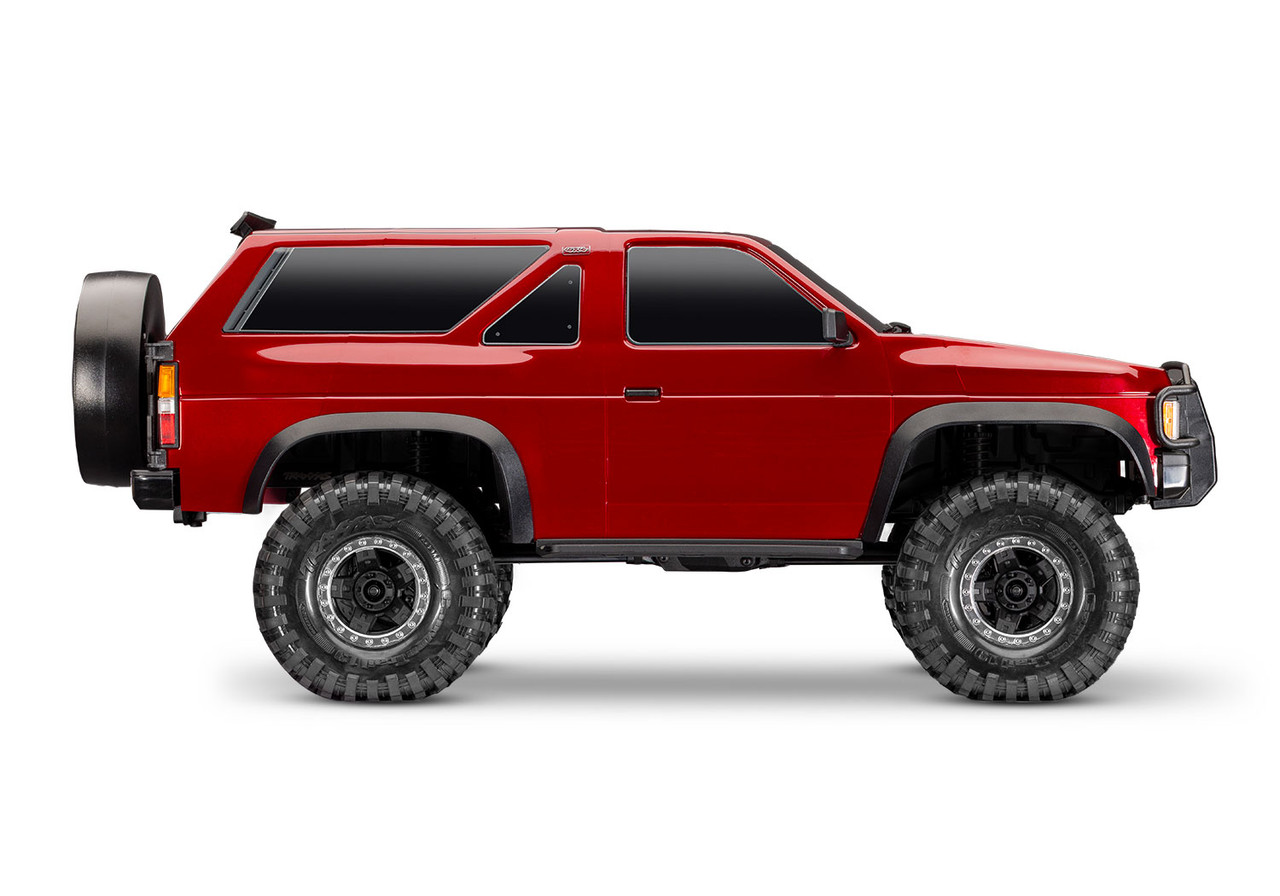

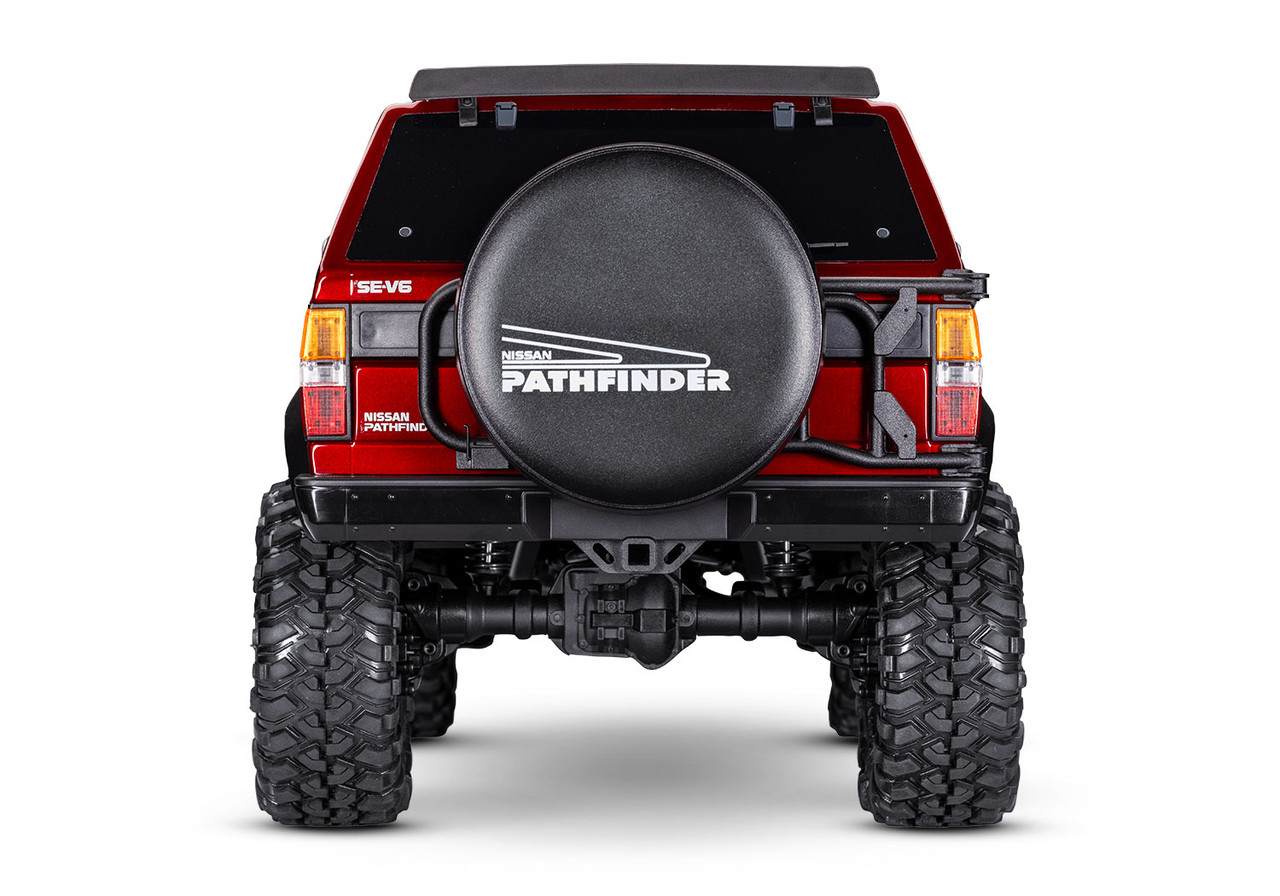

Traxxas TRX-4 Nissan Pathfinder Red
Classis Style. Modern Performance
The Nissan® Pathfinder® debuted in 1987 and defined a new era of 2-door sport utility vehicles with its rugged body-on-frame construction, powerful V6 engine, and bold offroad styling. Traxxas honors Pathfinder with a beautifully detailed reproduction mounted on the proven TRX-4® chassis. From the iconic grille and squared-off lines to period-correct badging, TRX-4 Pathfinder captures the spirit of the original Pathfinder with Traxxas performance and durability.
Features:
- Clipless body mounting system
- Portal axles for increased ground clearance
- Remote locking differentials
- High and low transmission
- Heavy-duty steel frame rails
- 3s Power System
Officially Licensed Replica Body
TRX-4 Pathfinder sets the standard for scale detail in RC crawlers. Classic 80’s style comes back to life with authentic molded details, period-correct badging, and stunning high gloss paint.
Clipless Body Mounting
TRX-4 Pathfinder's clipless body mounting system combines clean flowing lines with secure latching convenience. The hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
3s Power System
The powerful 3s LiPo-capable XL-5™ HV ESC and 21-turn Titan® motor provide endless torque to tackle the steepest climbs and all-out speed on flat terrain. This efficient system provides up to 2 hours of run time with a Traxxas 3s 5000 mAh LiPo battery pack!
The Power of Portals
Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. To achieve the same clearance with straight axles, the tires would have to be over an inch taller than the tires on TRX-4 Pathfinder.
Remote Locking Differentials
Traxxas allows you to lock and unlock both the front and rear differentials remotely from your transmitter. New sleeved micro cables control the differential action for scale appearance, without limiting suspension articulation.
High/Low Range Transmission
When the going gets tough, engage low range on the TQi transmitter for incredible 4WD pulling torque. Shift into high range for blasting down the trail. TRX-4 Pathfinder adapts to any situation or driving style.
Specs
Scale: 1/10
Weight: 6.78 pounds (3.08 kg)
Length: 22.72 inches (577 mm)
Width: 9.78 inches (249 mm)
Track: 9.78 inches (249 mm)
Height: 9.49 inches (241 mm)
Wheelbase: 12.28 inches (312 mm)
Center Ground Clearance: 3.14 inches (80 mm)
Drivetrain: Shaft-driven 4WD
Transmission: 2-speed high/low, remote shifting
Differential Type: 4 gear, remote locking
Gear Pitch: 32 pitch
Servo: 2075X metal gear, digital high-torque waterproof
Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs: 159 mm X 47 mm X 23 mm
Includes:
(1) TRX-4 Nissan Pathfinder
(1) 21T Reverse Rotation Motor
(1) XL-5™ HV ESC
(1) TQi™ 2.4GHz Radio System
(1) 2075X Metal Gear Servo
Miscellaneous Tools
Product Manual
Needed to Complete:
(1) 2-3S LiPo or 4-7 Cell NiMH Battery
(1) Compatible Battery Charger
(4) AA Batteries for Transmitter
