Product Description

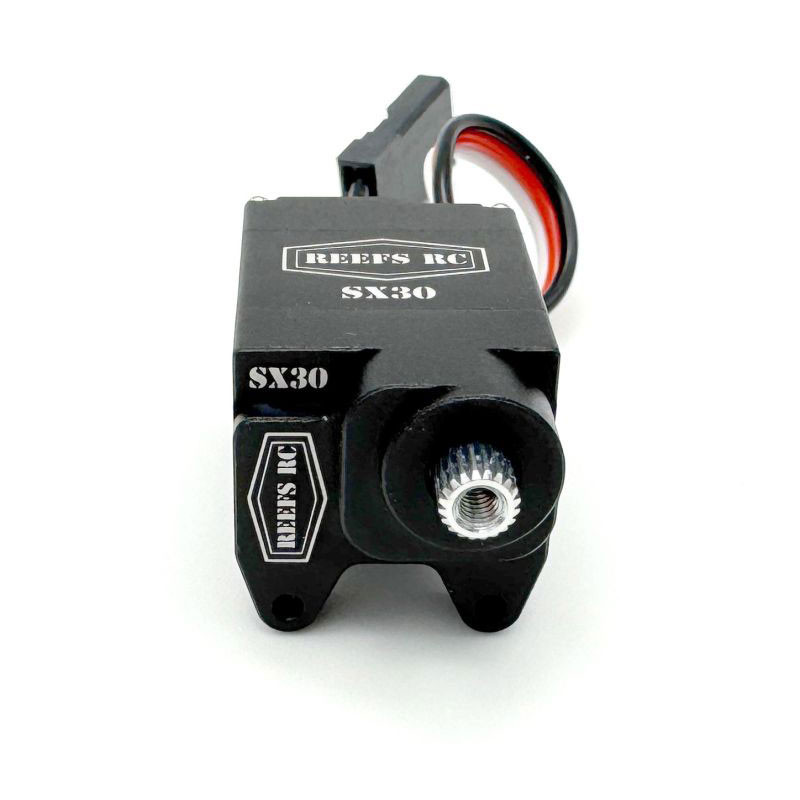

Reefs RC SX30 Sub Micro Hi-Torque Servo for the Axial SCX30 (SEHREEFS285)
SX30 High Torque Metal Gear Sub Micro Servo from Reefs RC is a purpose-built steering upgrade engineered specifically for the Axial SCX30. Designed as a true drop-in solution, this servo delivers dramatically increased torque and durability over the stock unit. With a machined aluminum case and all-metal geartrain, it also adds valuable low front-end weight to improve balance and stability.
Built with all-metal gears and twice the weight of the stock servo, it adds valuable low front-end weight, helping improve weight bias and stability on these lightweight rigs. Each servo includes three different lengths of black nylon servo arms. For those looking to upgrade, it's also compatible with the REEFS286 aluminum servo horn with stainless steel pivot ball (pivot ball pre-installed and ready to run).
Producing an impressive 35oz-in of torque at 6V—nearly five times that of the factory SCX30 servo—the SX30 provides precise, powerful steering control in demanding crawling conditions. Its military-grade construction, SMART chip technology, and pulse width modulation control ensure consistent and reliable operation. The increased servo weight improves weight bias on lightweight SCX30 rigs, enhancing traction and control. Multiple servo arm lengths are included, and compatibility with the optional REEFS286 aluminum servo horn allows further customization.
Installation is quick and easy - only seven screws need to be removed and replaced, so you can be up and running in minutes with increased torque and added weight to improve your SCX30's performance.
Features:
- Direct drop-in fit for Axial® SCX30
- 35oz-in torque at 6V
- All-metal gear construction
- Machined aluminum servo case
- Added low front-end weight
- Pulse width modulation control
- SMART chip technology
- Programmable with optional REEFS LINK V2
Specifications:
- Application: SCX30
- Input Voltage: 6.0-8.4V
- Operating Speed @ 6.0V: 0.075sec/60°
- Operating Speed @ 7.4V: 0.066sec/60°
- Operating Speed @ 8.4V: 0.06sec/60°
- Dynamic Torque @ 6.0V: 35oz-in (2.5kg-cm)
- Dynamic Torque @ 7.4V: 39oz-in (2.8kg-cm)
- Dynamic Torque @ 8.4V: 42oz-in (3.0kg-cm)
- Gear Material: Metal
- Dimensions: 0.96x0.6x0.44in (24.4x15.2x11.1mm)
- Weight: 0.29oz (8.2g)
Includes:
- (1) SX30 Sub Micro Servo
- (3) Black Nylon Servo Arms (Different Lengths)
