Product Description

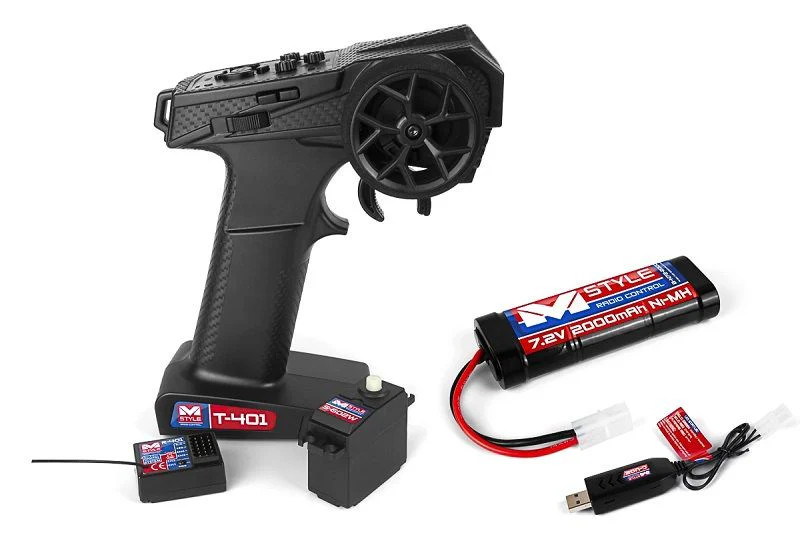

Mstyle R/C 542409 Set - Radioset, Servo, Battery and Charger (MSL 542409)
The R/C set from MStyle is the ultimate package for anyone looking to build or upgrade their R/C car with high-quality electronics. This all-in-one kit provides nearly everything you need to get your vehicle up and running, whether you're a hobbyist or a seasoned R/C enthusiast.
Transmitter T-401
The MStyle T-401 4-Channel radio system uses the latest digital 2.4GHz radio technology to give you trouble-free, total control of your RC car. This is a fully featured, lightweight, 4-channel radio with advanced ergonomic features and total adjustability. Thanks to its crystal-free 2.4GHz technology, you will be able to confidently drive with your friends without worrying about things like frequencies or radio conflicts, and the waterproof R-401 receiver allows you to take your RC vehicle anywhere you can dream!
The advanced features of the MStyle T-401 let you set the radio up for your car with custom settings like servo reversing, center trim, dual rate and end point adjustments. Only 4 AA batteries are required to power the MStyle T-401, so it's light in your hands, and the foam steering wheel makes it comfortable to hold. With the built-in failsafe feature, you will be protected just in case the radio transmitter loses its connection with the receiver.
Receiver R-401
The R-401 is the latest receiver for the MStyle T-401 transmitter. Simply bind and drive and have fun with your friends thanks to crystal-free 2.4GHz technology. Its tiny size is just 35x26mm and only 17mm high, and its extremely light weight of just 13 grams means it won't affect the weight balance, no matter where it's installed. The R-401's PCB features its own silicone jacket within the Hardcase outer for waterproof protection for a true go-anywhere RC experience, allowing you to drive in mud, rain, and snow! And with failsafe protection, you have peace of mind no matter what RC vehicle you drive!
C-U02 USB Charger
This USB Delta-Peak Charger is a simple and easy to use charger for 2-8 Cell NiMH battery packs. A USB Adaptor with an output of at least 2A is recommended.
S-602W Servo
This water-resistant servo is ideal for bashers and racers looking for a tough and durable servo that can be used in wet conditions (e.g. rain, snow, puddles).
Features:
MStyle T-401 Radio:
- Digital 2.4GHz FHSS technology
- 4 Channel
- Digital on and off switch
- Foam-covered wheel for extra comfort and grip
- Servo end point adjustments for steering and throttle
- Servo reversing
- Steering dual rate
- Centre trim (steering and throttle)
- Audible warnings if you leave the MStyle T-401 switched on as well as battery life!
- Lightweight (only 4 AA batteries required)
MStyle R-401 Receiver:
- Waterproof R-401 receiver works with MStyle T-401 transmitters
- Digital Frequency-Hopping Spread Spectrum (FHSS) 2.4GHz technology
- Simple radio binding steps
- Adjustable built-in Signal loss failsafe
- Run your RC models kit with other drivers without worrying about frequencies!
- 4-Channel
- A built-in light controller on a separate channel will allow for the addition of headlights and taillights on suitable models with the Maverick LED Light Set (#150465) or HPI Warm White LED Kit (#160560)
- Ideal for electric RC vehicles with a 6V 35mA minimum BEC power input
Specifications:
Charger:
- Charging Range: 2-8 Cell NiMH (600-2500mAh)
- USB Input: 5V 1A, (2A Recommended)
- Connector: Tamiya Battery connector
Servo:
- Operating Voltage: 4.8-6V
- 4.8V: Speed: 0.18 sec/60 degrees
- Torque at 4.8V Speed: 6kg-cm
- 6V: Speed: 0.16 sec/60 degrees
- Torque at 6V Speed: 7kg-cm
- Servo Spline: 25T
- Main case: 40x37.5x20.0mm (excluding mounting tabs, servo spline, & cable outlet)
- Mounting tab hole centers: 49.5.0x10mm
- Weight: 46g (excluding servo horn)
Includes:
- (1) Radio T-401 2.4GHz: A reliable, easy-to-use transmitter offering precise control for your R/C car.
- (1) Receiver R-401 4Ch 2.4GHz (Waterproof): A durable and waterproof receiver designed to ensure stable connectivity in various conditions.
- (1) Servo S-602W 6KG: A powerful and responsive servo with a 6kg torque capacity, perfect for handling sharp turns and quick movements.
- (1) USB NiMh Charger C-U02: A convenient USB charger for recharging your battery quickly and efficiently.
- (1) 7.2V 2000mAh NiMh Stick Pack (with Tamiya Plug): A high-performance battery that provides the power you need for extended driving sessions.
