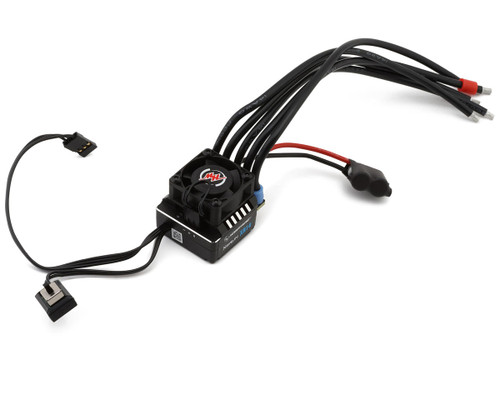

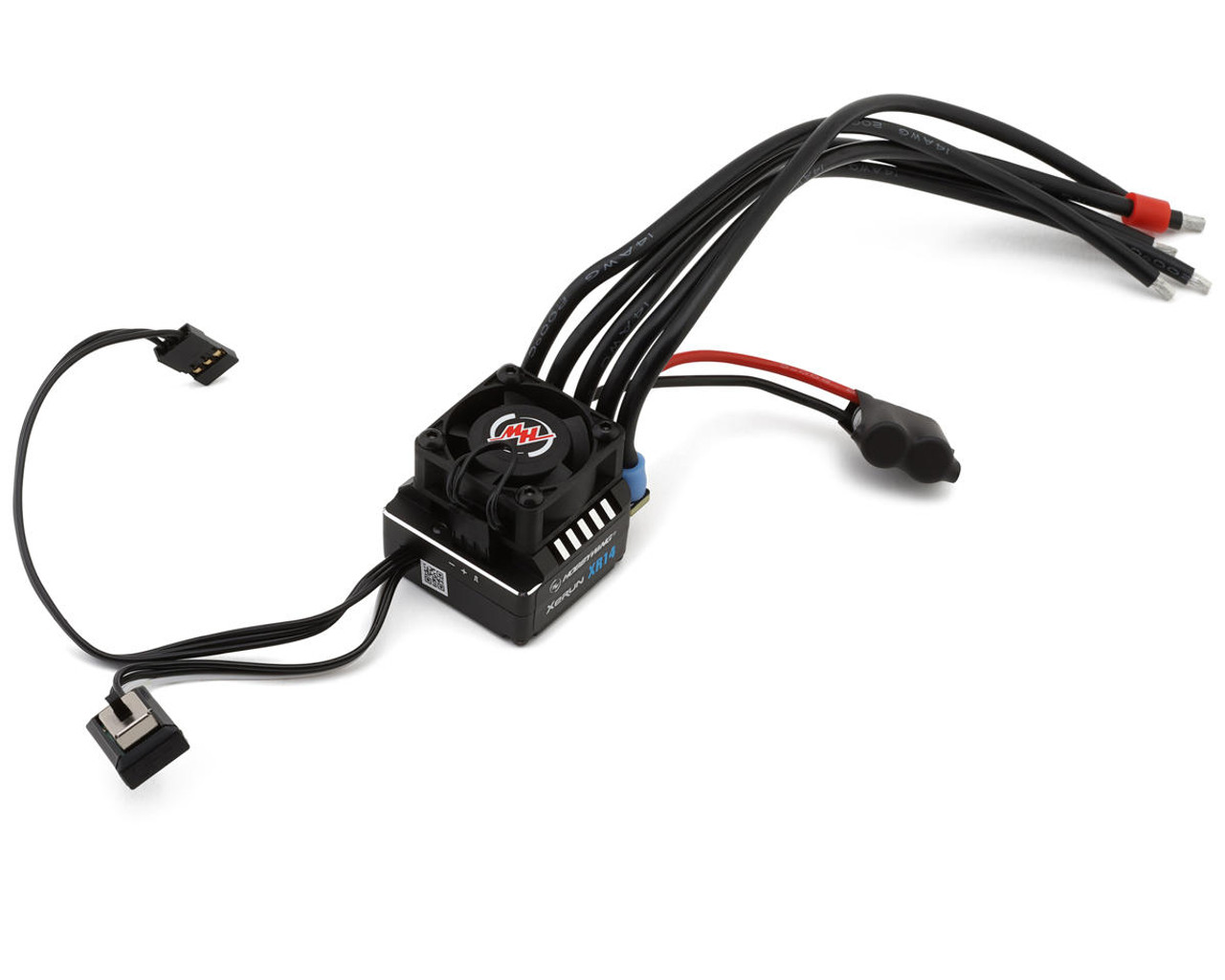

Hobbywing XR14 ESC (2S) (HWI30112622)
The Xerun XR14 Sensored Brushless ESC by Hobbywing is a competition-grade electronic speed controller (ESC) engineered for peak performance in 1/14 scale on-road and off-road racing. Its advanced software and hardware design offer unparalleled flexibility and precision, making it an excellent choice for serious RC racing enthusiasts. Whether you're competing in Blinky or Boost categories, this ESC delivers the power, customization, and protection you need to dominate the track.
Exceptional Power & Cooling
The Xerun XR14 ESC boasts a maximum continuous output current of seventy amps, ensuring consistent power delivery even under intense racing conditions. Its full-metal heat sink top is designed for optimal heat dissipation, maintaining safe operating temperatures during prolonged use. This robust cooling system provides reliability, allowing you to push your RC vehicle to its limits without the worry of overheating.
Comprehensive Customization Options
With twenty-six adjustable parameters, the XR14 ESC offers unparalleled control over your RC car's performance. Key adjustments include PWM frequency, initial throttle response, softening, and boost or turbo timing. These customizable settings empower racers to fine-tune their power delivery and braking dynamics, ensuring a tailored driving experience for any racing scenario.
Reliable Protection & Data Insights
Safety and analytics are top priorities in the design of the Xerun XR14 ESC. It features built-in reverse polarity protection to prevent damage from incorrect battery connections. Additionally, comprehensive protections such as low-voltage cutoff, thermal safeguards, and fail-safe functions ensure durability during operation. The integrated data recording function, accessible through the Hobbywing Link App, provides valuable performance insights, making it easier to analyze and improve your setup.
Features:
- Seventy-amp continuous output current
- Full-metal heat sink for efficient cooling
- Twenty-six adjustable parameters
- Dual application modes for on-road and off-road
- Reverse polarity protection
- Low-voltage cutoff and thermal protection
- Innovative softening function for power tuning
- Adjustable PWM and brake frequencies
- Data recording with OTA Bluetooth module compatibility
- Firmware upgrades via LCD Program Box (HWA30502002) or OTA Programmer (HWA30850400) available separately
Specifications:
- Suggested Application: 1/14 On-Road & Off-Road Racing, 1/12 & 1/10 Light Load Vehicles
- Motor Type: Brushless - Sensored/Sensorless
- Input Voltage: 2S LiPo (7.4V)
- Continuous Current: 70A
- Peak Current: 300A
- Dimensions (LxWxH): 1.39x1.23x1.12in (35.2x31.3x28.5mm)
- Weight: 2.33oz (66g)
- Motor Limits: 540-Size (>6000kV or 8.5T)
- BEC Voltage: 6V/7.4V at 4A
- BEC Peak Current: -
- Motor Connector: Solder
- Battery Connector: Solder
- Motor Wire: 14AWG
- Battery Wire: 14AWG
- Programmable: Yes, with OTA or LCD Program Box Pro*
Includes:
- (1) Hobbywing Xerun XR14 Sensored Brushless ESC
- (1) Cooling Fan
- Factory Decals & Accessories
- Product Manual
