Product Description
Hobbywing 30120403 QuicRun Fusion Mini16 3000KV (370 Spec) 2in1 FOC System (HWI30120403)
The QuicRun Fusion Mini16 FOC system features an integrated design of the ESC and motor, simplifying the car frame layout and wiring for enhanced convenience. Employing FOC (Field Oriented Control) driving mode for rock crawlers, it delivers strong low-speed torque, improving upon standard brushless systems and often being preferred over brushed systems for its overall feel.
The system boasts high efficiency, generates less heat, and effectively extends run time while the motor operates more quietly and smoothly. With an IP65 protection grade, it’s capable of running in all conditions. It offers intelligent torque output and speed closed-loop control for precise handling and includes active drag brake force adjustment, providing superior holding power on inclines.
Equipped with a strong built-in switch mode BEC, the system offers a continuous current of up to 4A and supports switching between 6V and 7.4V, enabling it to drive high-torque and high-voltage servos. It also includes multiple protection functions: battery low voltage, overheat, throttle loss, and lock-up protection. For convenient ESC parameter settings, it supports LED and LCD G2/Pro program boxes.
Features:
- Integrated ESC and motor design for easier installation
- FOC driving mode for smooth low-speed control
- IP65 waterproof and dustproof for all-weather performance
- Built-in switch mode BEC with 6V/7.4V adjustment
- Active drag brake force adjustment for better incline control
Specification:
- Suggested Application: 1/16 & 1/18 Crawler
- Motor Type: Brushless
- Input Voltage: 2-3S LiPo
- Continuous Current: 30A
- Peak Current: 80A
- Dimensions (LxWxH): in (24x42mm)
- Weight: 2.53oz (72g)
- BEC Voltage: 6/7.4V adjustable
- BEC Current: 4A
- Motor Connector: -
- Battery Connector: EC2
- Throttle Wire: Servo Wire
- Programming: Button / Remote Program Box

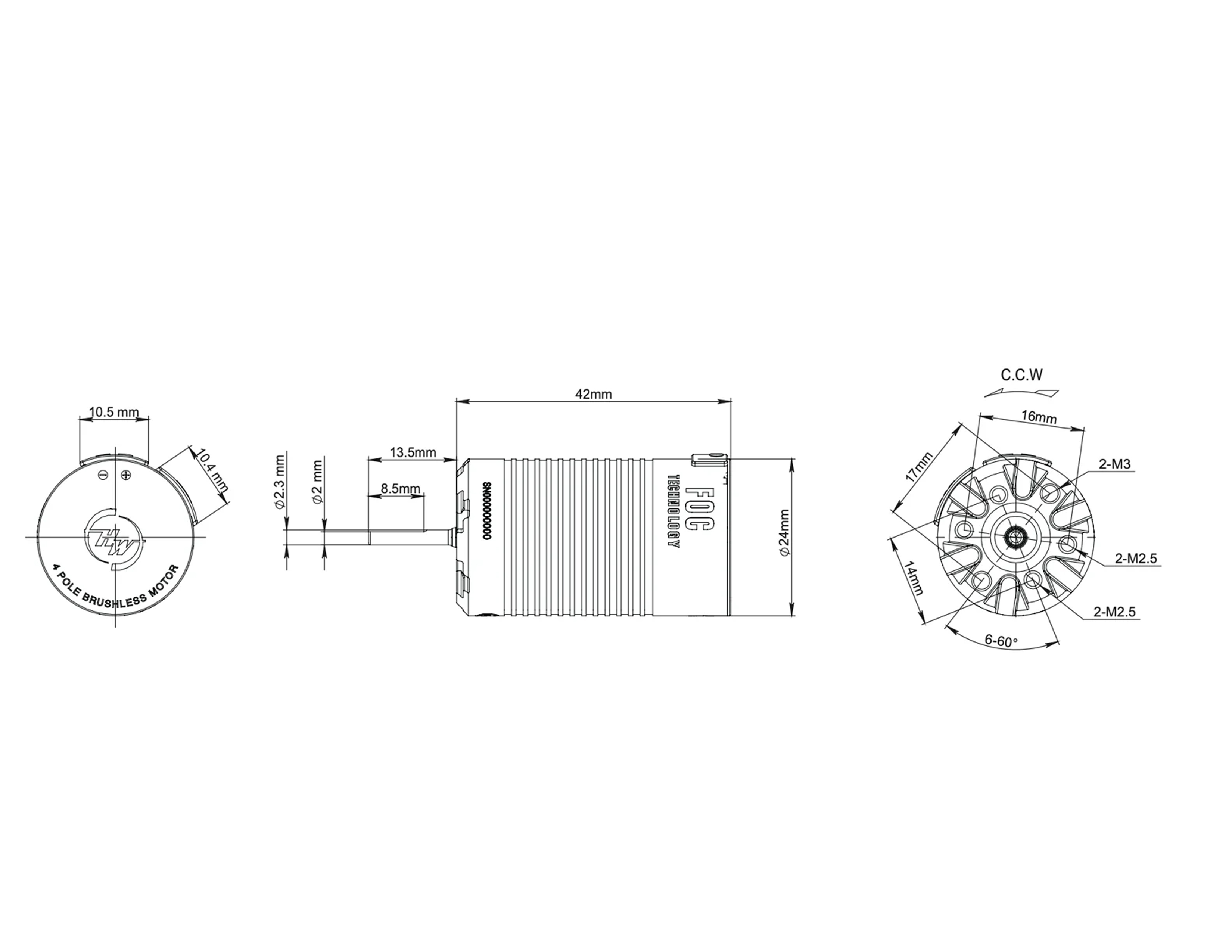

- Diameter/Length of Motor: 24mm/42mm
- Shaft Diameter/Shaft Exposed Length: 2.3mm/13.5mm
- Motor Poles: 4
Includes:
- (1) Quicrun Mini16 Fusion 370 2-in-1 Brushless ESC & Motor
