Product Description

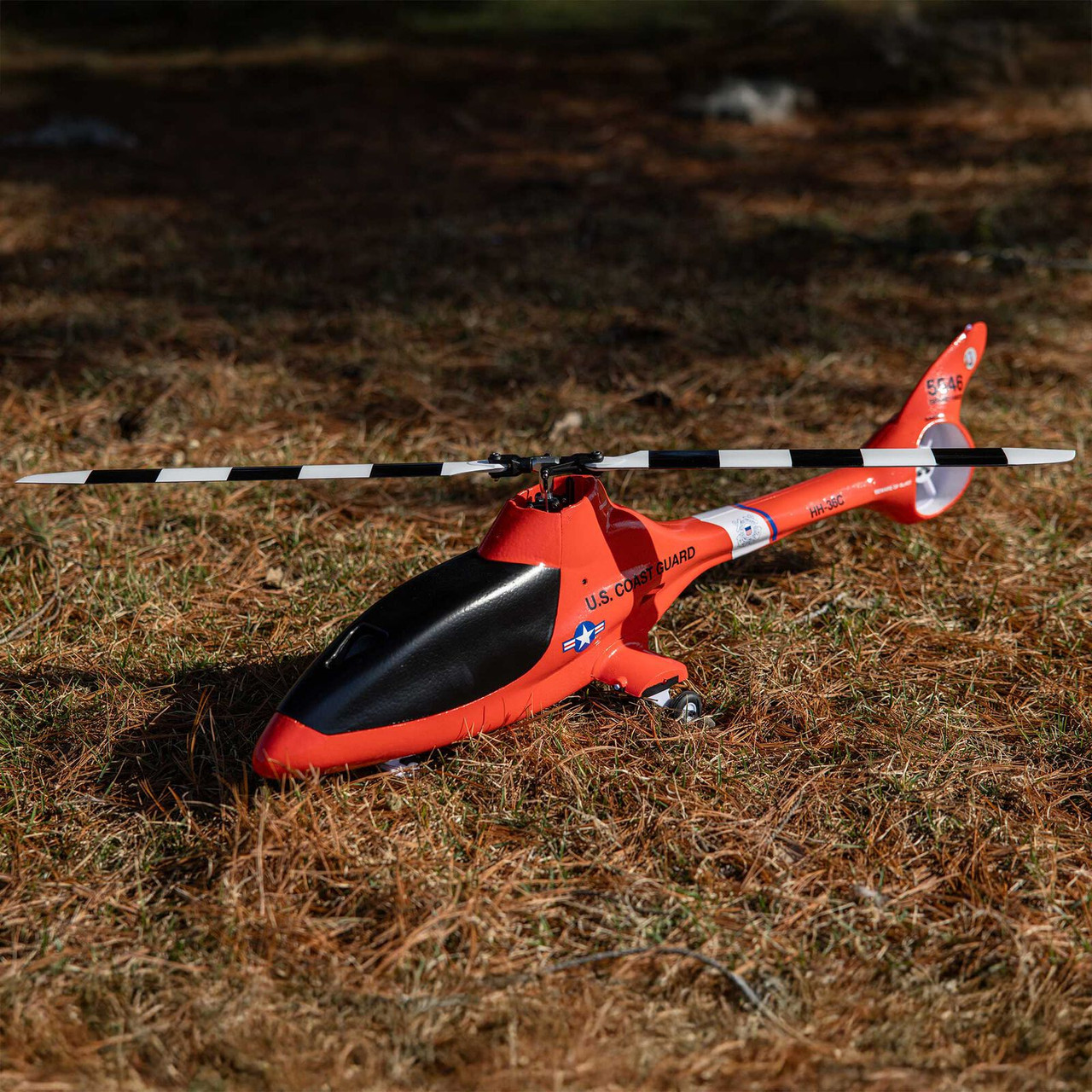

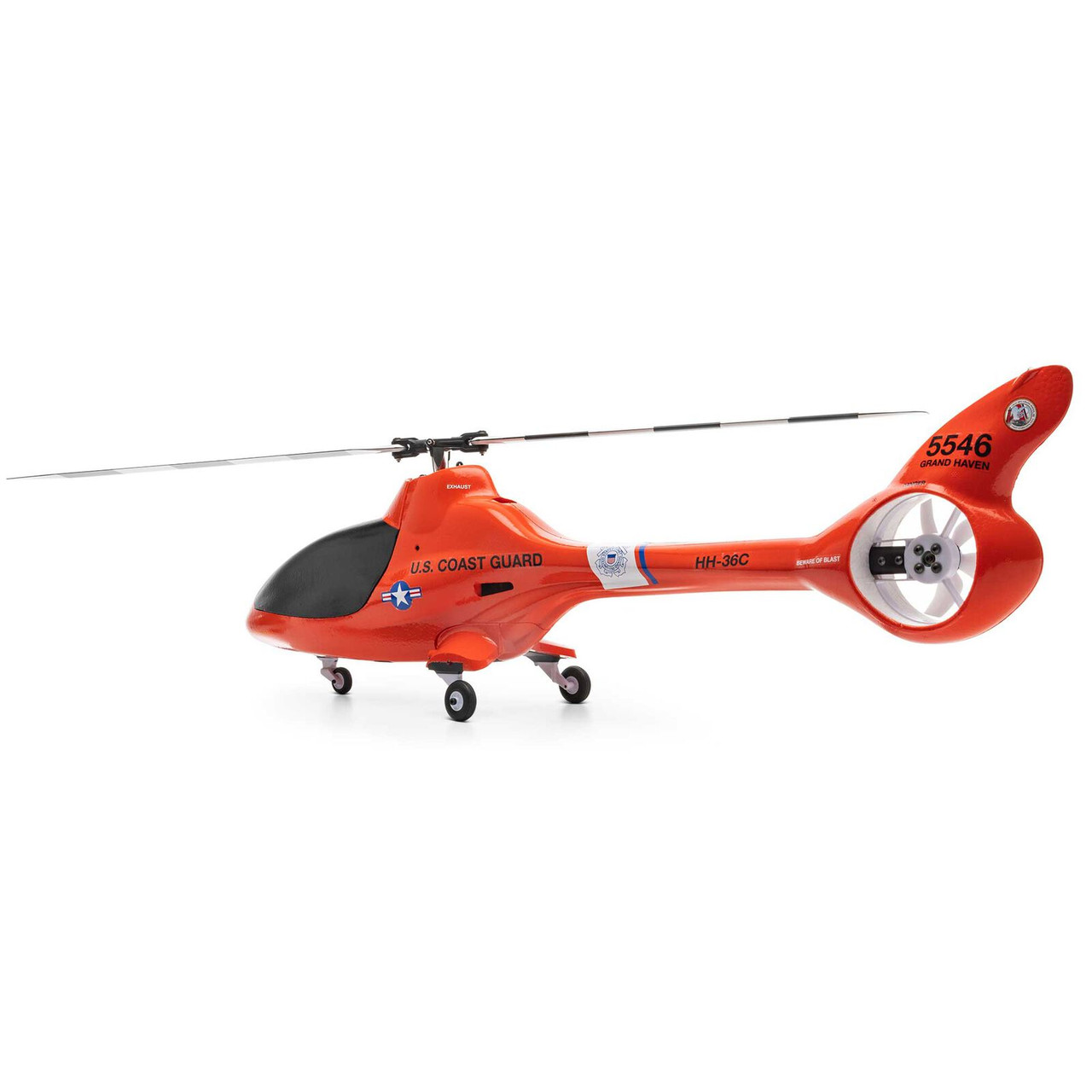

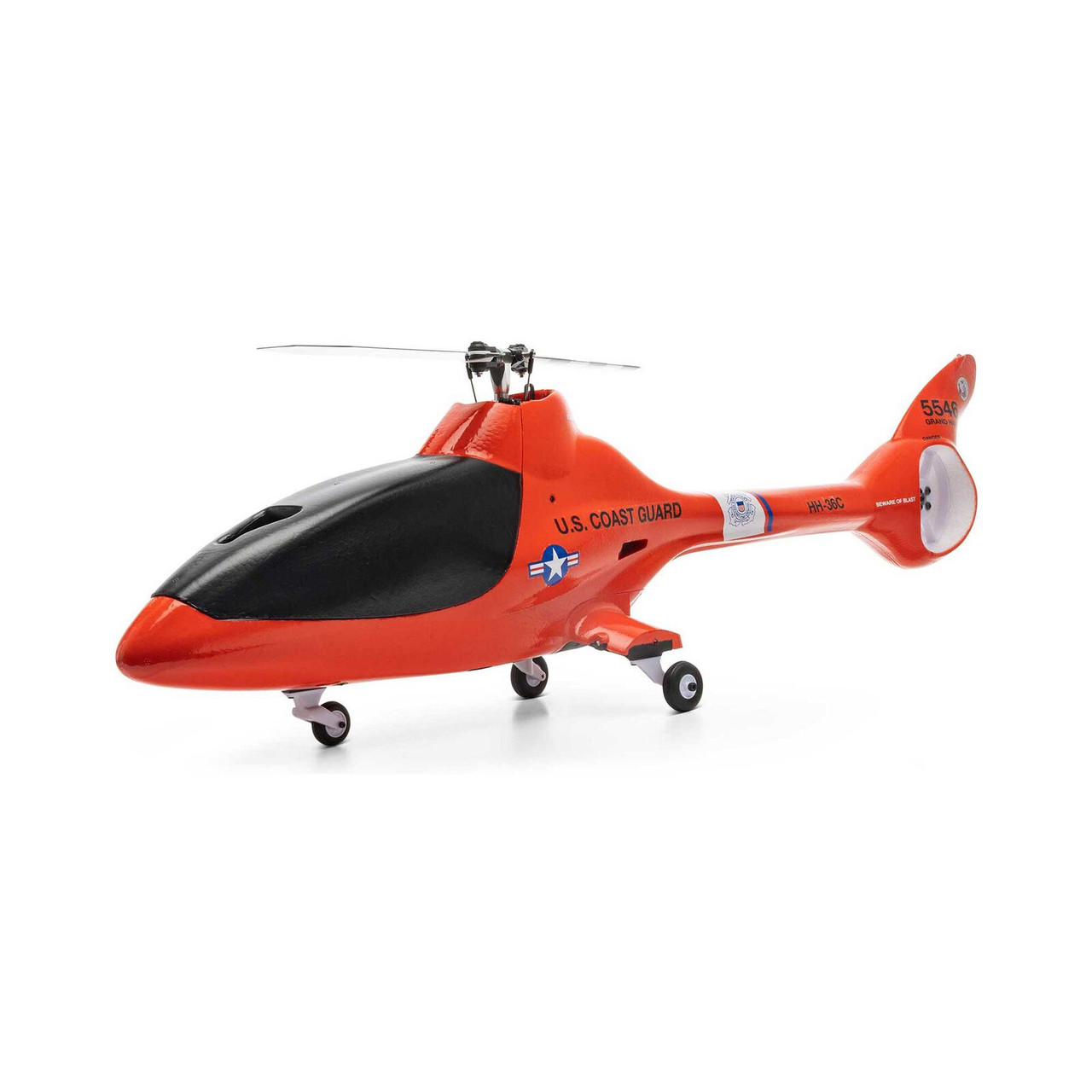

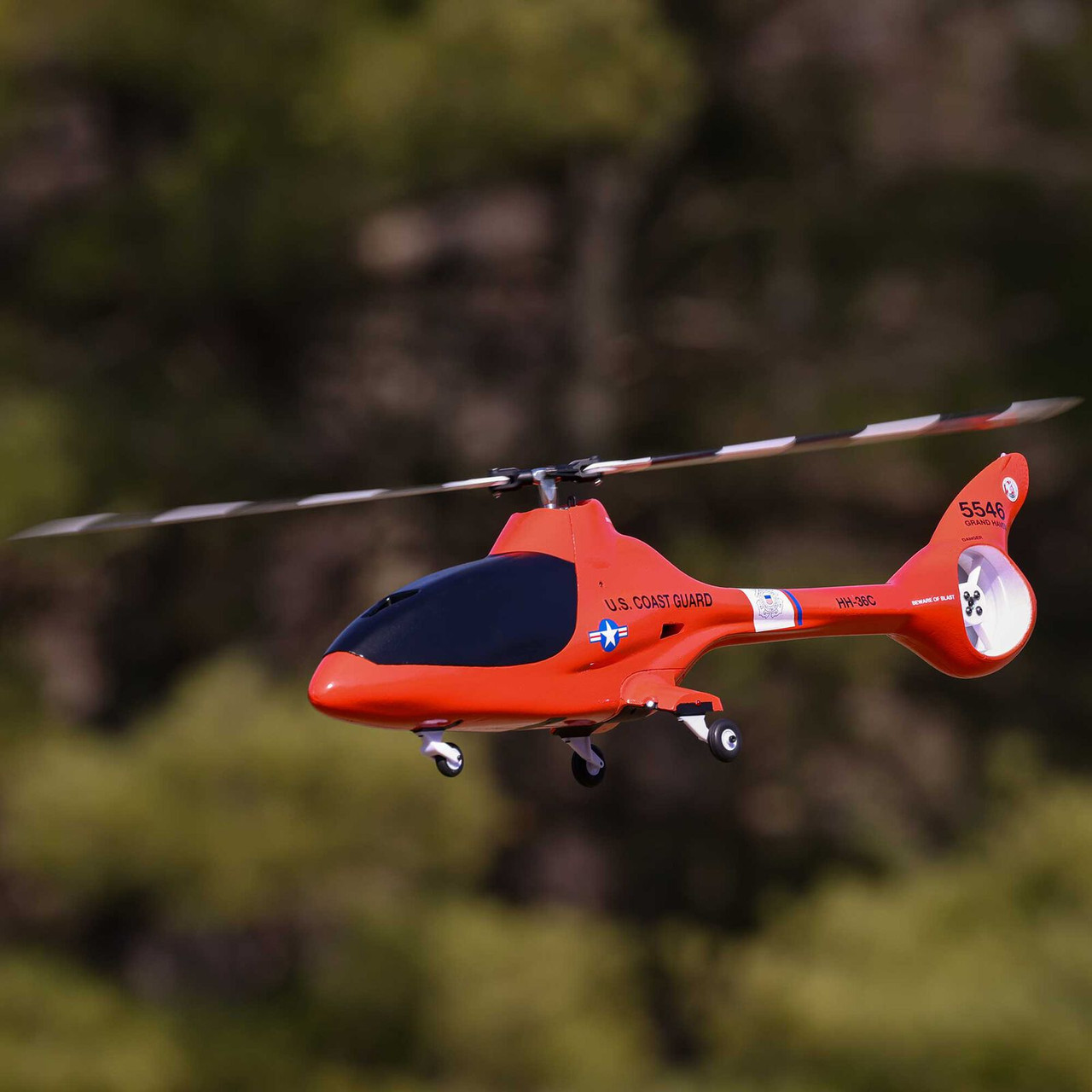

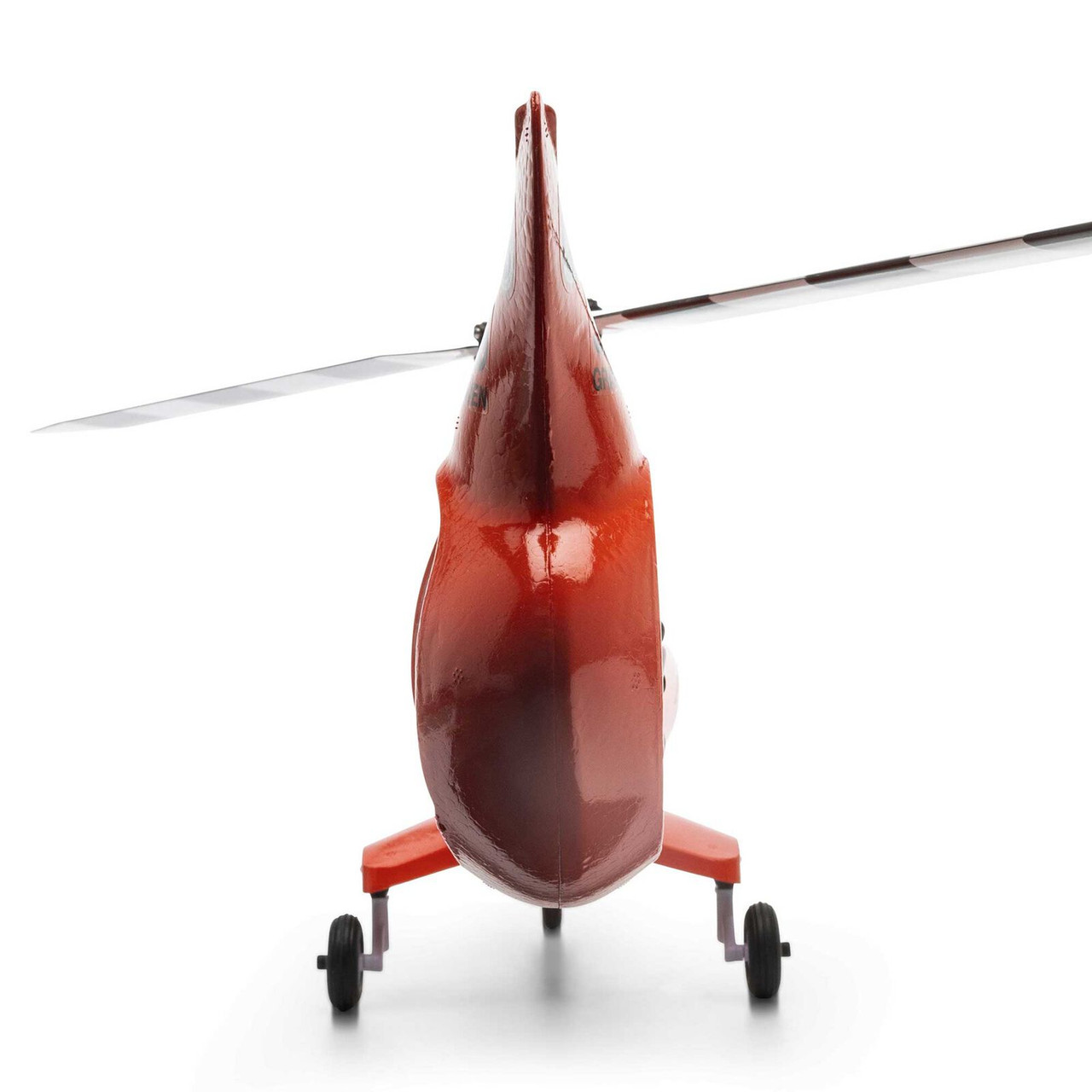

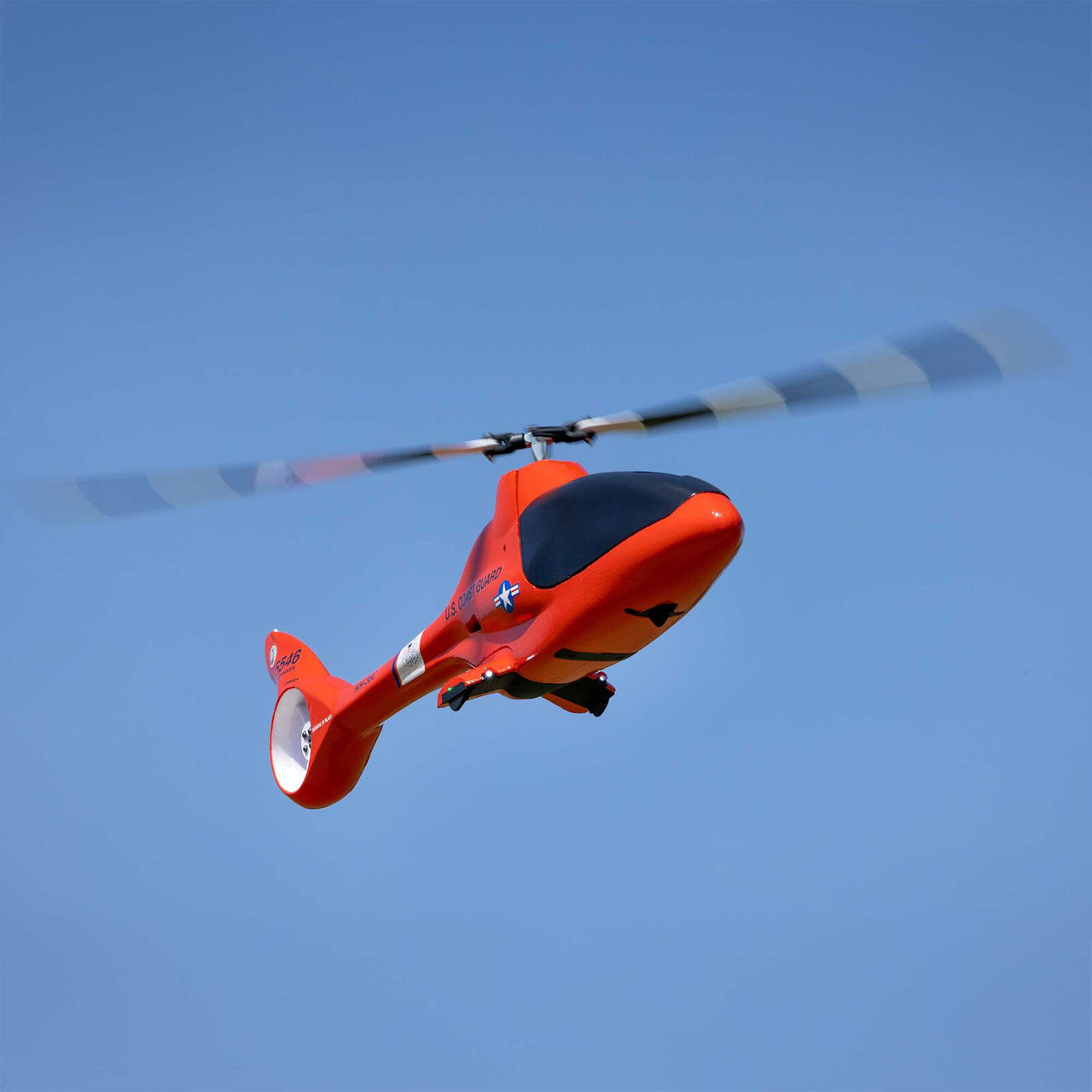

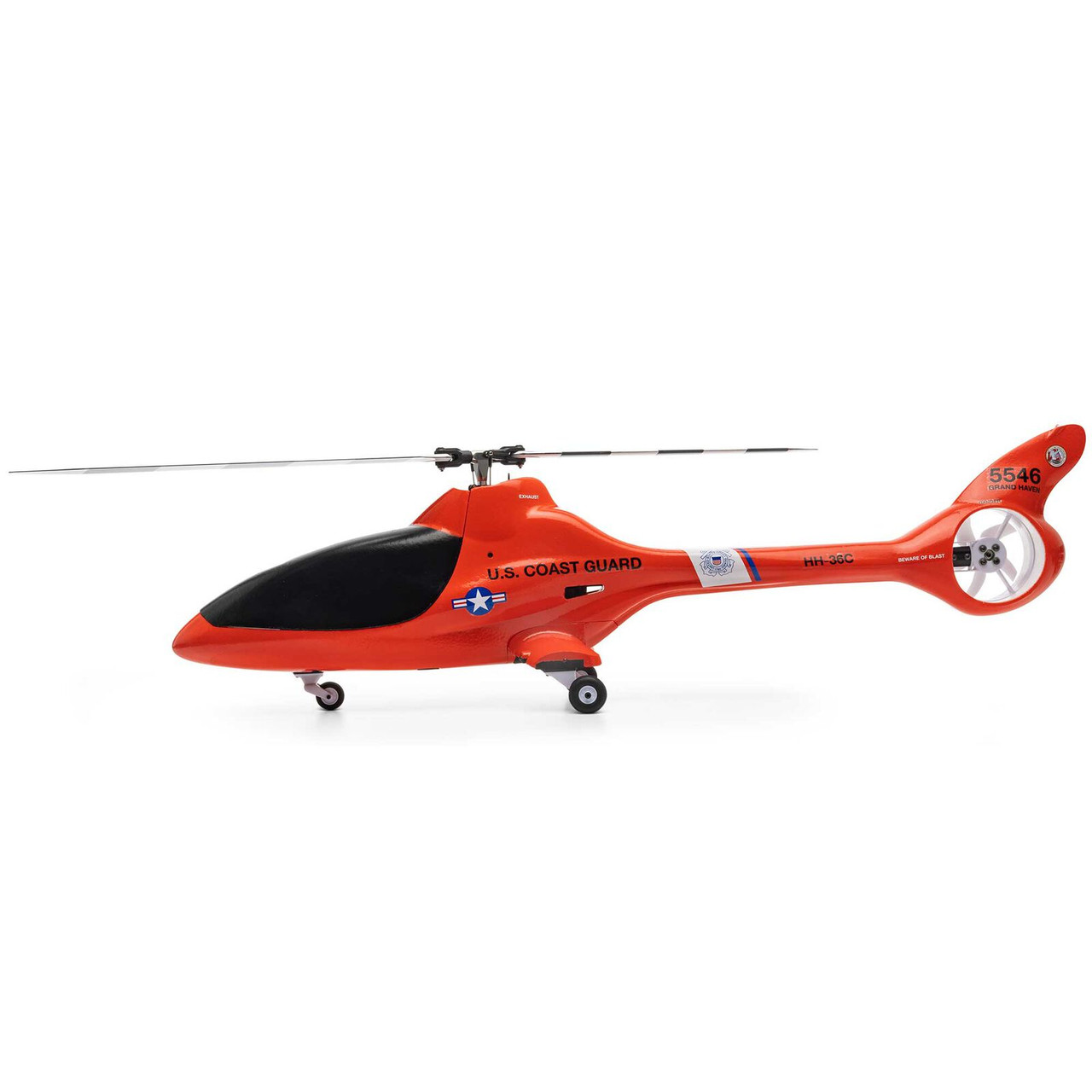

Blade Eclipse 360 Coast Guard BNF Basic
An innovative blend of scale-like looks including a fully molded and painted EPO body wrapped around a high-performance pod-and-boom airframe makes the Blade® Eclipse 360 Coast Guard an eye-catching addition to any RC pilot’s collection. It’s designed to be capable of smooth hovering plus scale-like and sport flying for intermediate pilots, yet is also capable of aerobatics and even mild 3D in the hands of experienced pilots. The expertly-tuned FC6250HX flybarless control system includes optional-use SAFE technology for angle limits and automatic self-leveling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to “bail out” at the push of a button if you ever need it! The brushless direct-drive ducted fan tail motor and elongated aluminum tail boom keep the heli firmly locked in, and the brushless outrunner main motor provides excellent power and throttle response for an impressive control feel. Both motors are connected to a Spektrum Dual Smart ESC that delivers real-time telemetry data to AirWare™ equipped transmitters, and they’re compatible with common and popular 3S 2200–3200mAh batteries. Digital, metal-geared servos, an aluminum head block, and carbon fiber main rotor blades with stripes deliver reliable and precise control for the factory-assembled airframe. The lightweight yet durable body is equipped with LED navigation and landing lights along with hard mounting points for the low-profile skids that provide a streamlined “gear up” look, or you can install the included wheel set for a different look and ground handling experience. And it’s all delivered in a model ready to bind to your favorite Spektrum transmitter to offer a unique helicopter flying experience you can’t get anywhere else!
Features:
- An innovative blend of scale-like looks and a high-performance pod-and-boom airframe to deliver a unique helicopter flying experience
- A lightweight yet durable, fully molded and painted EPO body featuring LED navigation and landing lights
- Low-profile skids plus an optional-use wheel set for a different look and ground handling experience
- Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters
- Factory-installed Spektrum FC6250HX flybarless flight controller featuring exclusive AS3X and SAFE technologies
- Receiver loaded with a Smart Transmitter File (STF) that allows you to import all settings for NX and iX series transmitters during the binding process
- Easier to fly with innovative and optional-use SAFE flight envelope protection
- The unmatched stability and locked-in feel of exclusive AS3X technology
- Factory-installed digital, metal-geared cyclic servos with precise ball-link equipped linkages
- Two Spektrum brushless outrunner motors deliver excellent performance and flight times

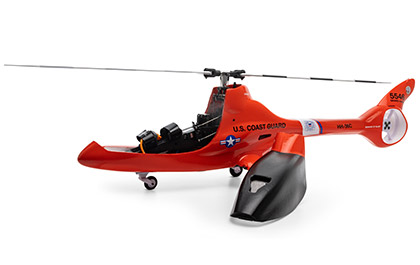

- Convenient, magnetically secured canopy/hatch with a large battery compartment
- Compatible with popular and common 3S 2200–3200mAh LiPo batteries
- Aluminum head block and carbon fiber main rotor blades with stripes
- Fully factory-assembled and nearly ready to fly right out of the box
Bind-N-Fly Completion Level Advantage
Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly! The receiver is also loaded with a Smart Transmitter File (STF) that allows you to import all the settings for NX and iX series transmitters during the binding process to be ready to fly in less time than ever.

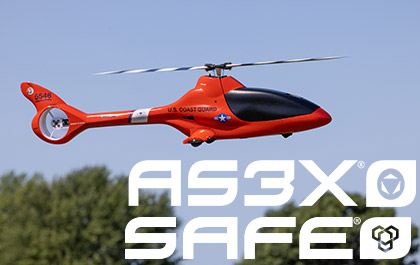

Exclusive Technologies
The factory-installed and expertly tuned FC6250HX flybarless flight controller features exclusive Spektrum™ AS3X® and SAFE® technologies. Optional-use SAFE technology features angle limits and automatic self-leveling to help prevent crashes in Normal mode. AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all other flight modes so you can fly inverted and perform aerobatics too. Plus, you can use Panic Recovery to “bail out” at the push of a button if you ever need it!
Telemetry Capable
The Eclipse 360 Coast Guard is equipped with a Spektrum Smart ESC, flight controller, and a receiver that provides – with Smart and non-Smart batteries – real-time overall flight battery voltage, motor RPM, and other telemetry information to compatible Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6 to 20, the iX12 to 20, and others) while you fly.

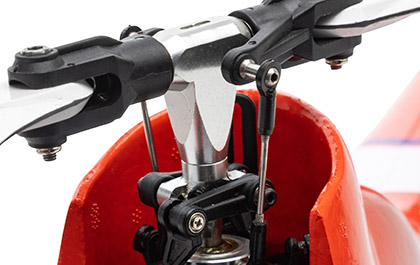

Durable Precision
Digital, metal-geared cyclic servos, an aluminum head block, and carbon fiber main rotor blades with stripes deliver excellent durability and precise control.
Collective Pitch
The collective pitch main rotor mechanics offer smooth control to deliver a unique blend of hovering, scale-like, sport, and aerobatic flying capabilities.

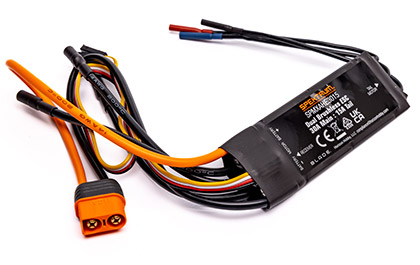

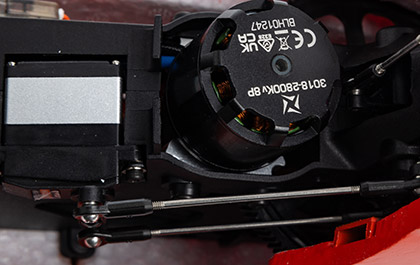

High Power
The powerful brushless main and tail motors are connected to a factory-installed Spektrum Dual Smart ESC and are compatible with common and popular 3S 2200–3200mAh batteries.

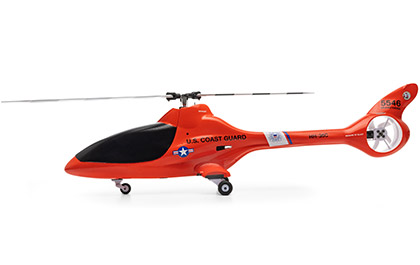

Unique Body
The lightweight yet durable body is molded from EPO and fully painted to provide a unique and scale-like look. It’s also equipped with LED navigation and landing lights for improved visibility.

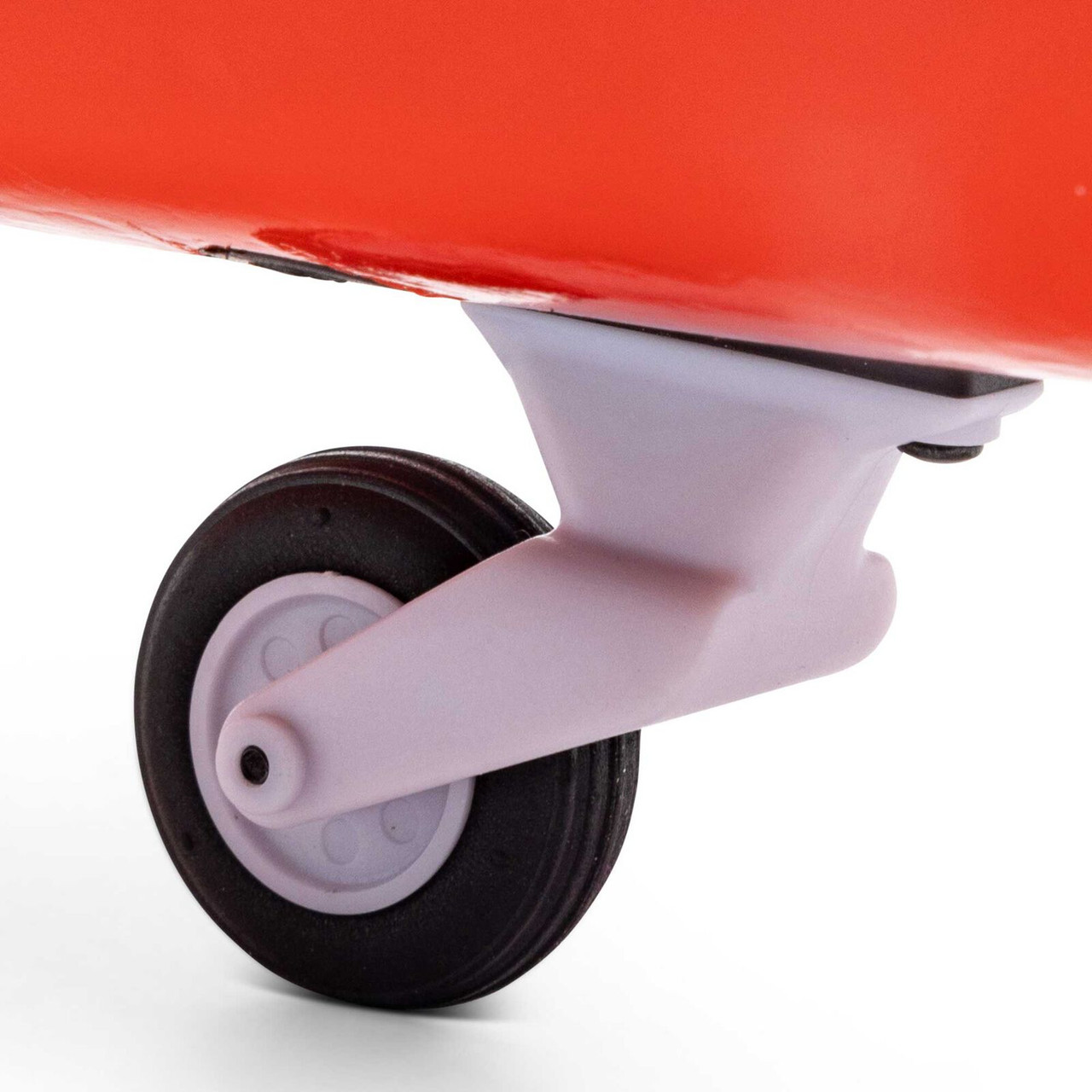

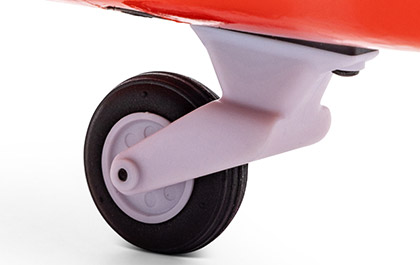

Gear Options
Factory-installed low-profile skids offer a streamlined “gear up” look and work great for takeoffs and landings on smooth surfaces. Or you can install the included optional-use wheel set for a different look and ground handling experience on smooth, grass, and other surfaces.
Completion Level Bind-N-Fly Basic
Main Blade Material Carbon Fiber
Main Motor Type Brushless
Main Rotor Blade Length 13.78" (350 mm)
Main Rotor Diameter 30.6" (777 mm)
Main Rotor Head Type Collective Pitch Flybarless
Minimum Required Radio Full-range 6+ channel Spektrum DSMX®/DSM2® compatible transmitter (programmable for helicopters)
Power Type Electric
Product Height 7.6" (193 mm)
Product Length 30.8" (782 mm)
Flying Weight: 33 oz (935 g)
Product Width 4.7" (119 mm)
Recommended Battery 3S 11.1V 2200–3200mAh LiPo with EC3 or IC3 Connector
Skill Level Level 2
Swashplate Type 120 Degree CCPM
Tail Blade Material Plastic
Tail Drive Direct Drive
Tail Motor Type Brushless Outrunner
Tail Rotor Diameter 3" (76 mm)
Technology AS3X, SAFE
(1) Blade Eclipse 360 Coast Guard with:
(1) Brushless Outrunner Tail Motor (installed)
(1) Brushless Outrunner Main Motor (installed)
(3) Spektrum Digital, Metal-Geared Servos (installed)
(1) Spektrum 6250HX Flybarless Control System (installed)
(1) Spektrum 4651T 2.4GHz DSMX® Receiver with Telemetry (installed)
(1) Spektrum Dual 30A Main and 15A Tail Brushless Smart ESC (installed)
(1) Main Blade Holder
(1) Product Manual
Full-range 6+ channel Spektrum DSMX®/DSM2® compatible transmitter (programmable for helicopters)
3S 11.1V 2200–3200mAh LiPo with EC3™ or IC3® Connector
Compatible LiPo charger
